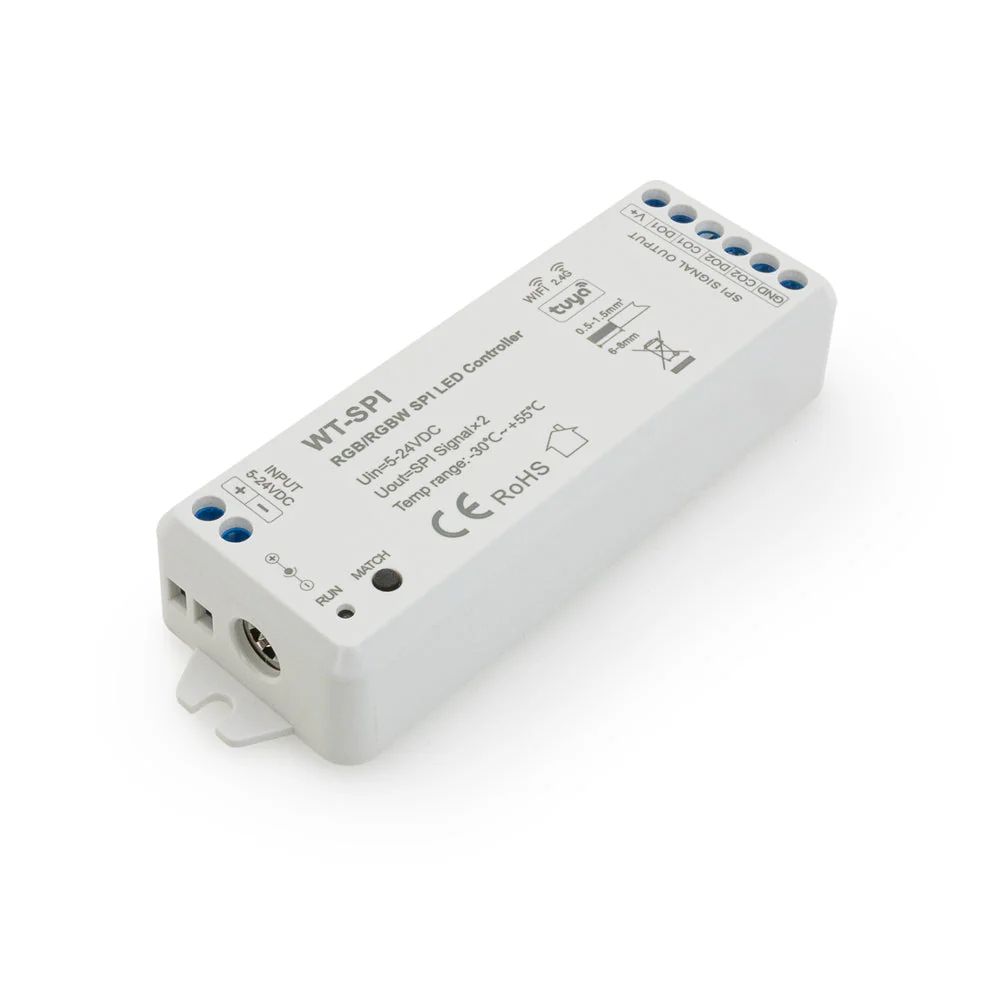

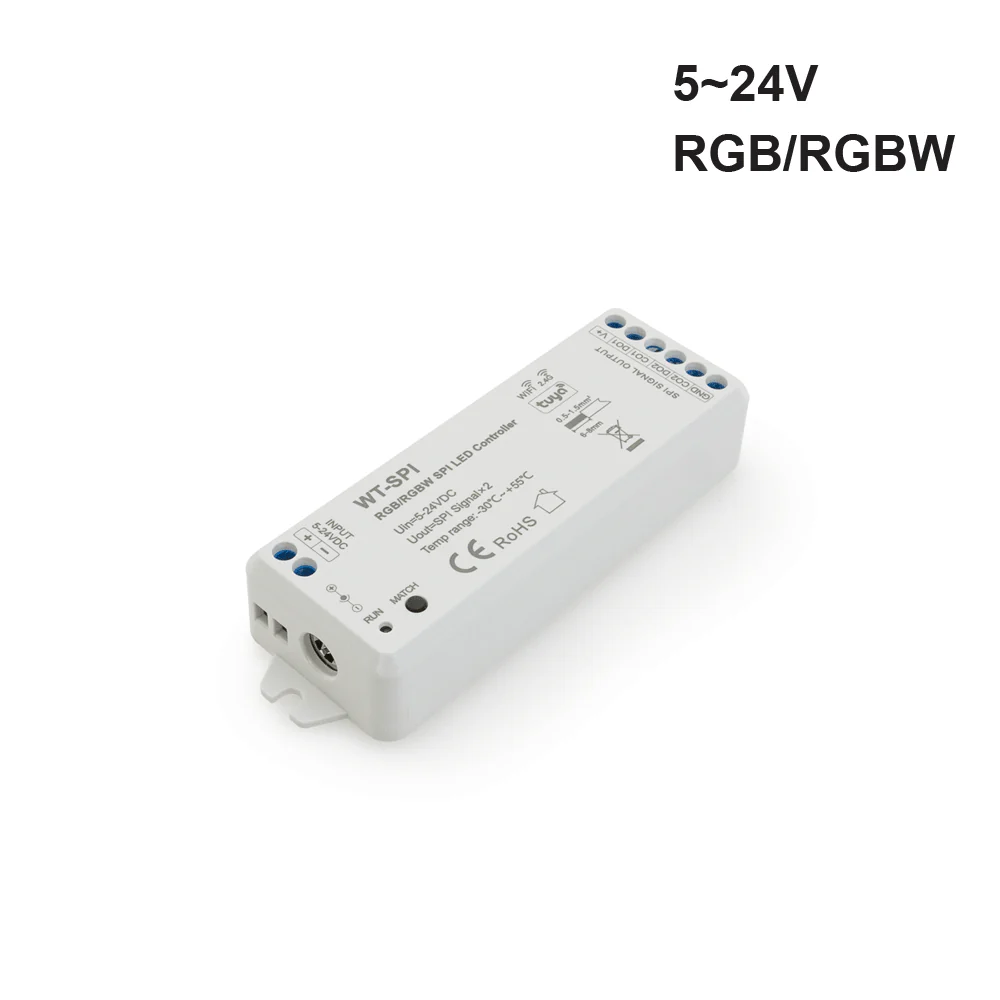

5-24VDC WiFi & RF RGB/RGBW SPI LED Controller WT-SPI (Tuya App)
| Model | WT-SPI |
| Input Voltage | 5V~24V DC |
| Input Current | 8A |
| Input Signal | Tuya APP + RF 2.4GHz |
| Output Signal | SPI(TTL) x 2 |
| Scenario Mode | 44 default and 10+ customizations |
| Pixel Dots | Max. 1000 |
| EMC Standard (EMC) | ETSI EN 301 489-1 V2.2.3 ETSI EN 301 489-17 V3.2.4 |
| Operation Temperature | Ta: -30°C ~ +55°C |
| Case Temperature (Max.) | Tc: +65°C |
| Compatible remote controller | R9 (RGB/RGBW Remote) |
| App |
Tuya Android IOS |
| IP Rating | IP20 |

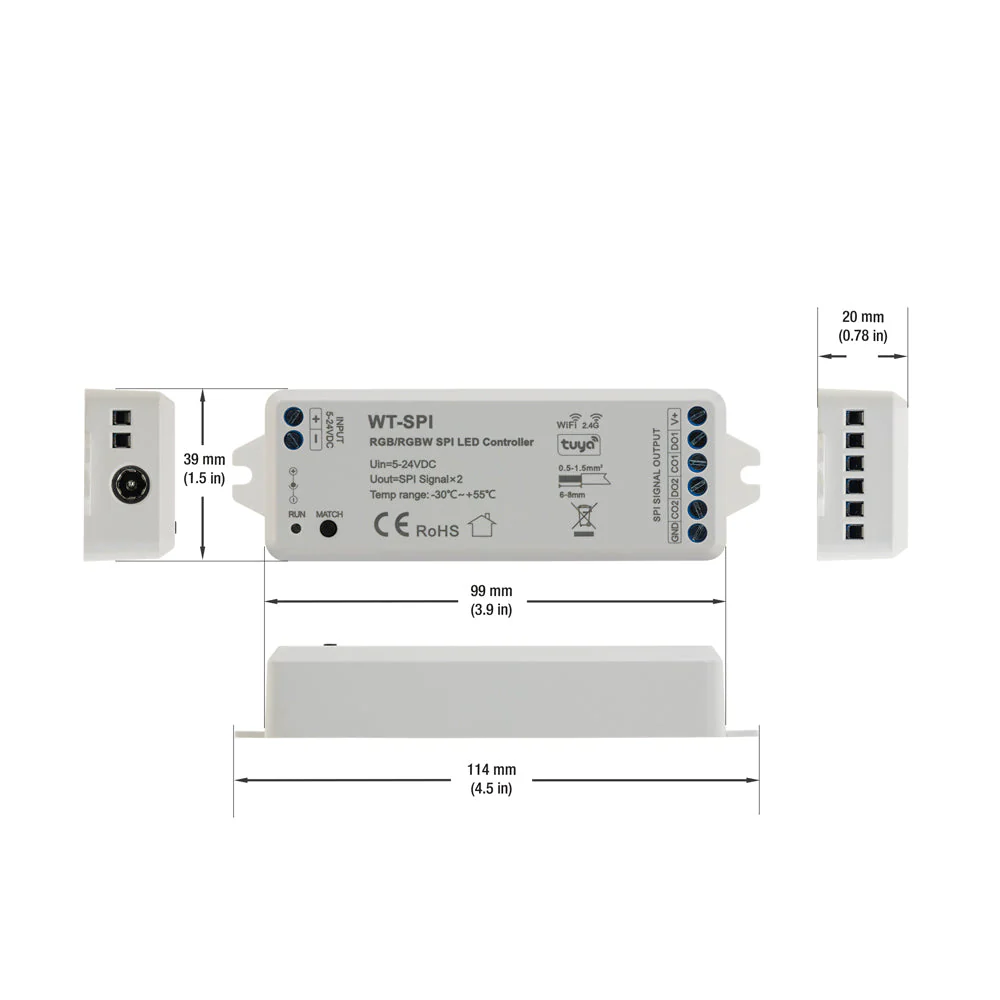

| Dimensions | 114 x 39 x 20mm (4.5 x 1.5 x 0.78in) |
| Certifications |
|
Feature:
- Wide Input Voltage Range: Operates with 5V to 24V DC, compatible with various LED strips.
- Remote Control Convenience: Manage lighting with the Tuya mobile app and RF 2.4GHz signal input.
- Precise Pixel Control: Accommodates up to 1000 pixel dots for intricate and accurate lighting effects.
- Versatile Compatibility: Works with 45 different LED strip types, offering customization options.
- Dynamic Scenarios: Access 44 default dynamic scenarios and create over 10 custom lighting effects.
- Music Integration: Synchronize lighting with multiple local and app-based music rhythms.
| Model | WT-SPI |
| Input Voltage | 5V~24V DC |
| Input Current | 8A |
| Input Signal | Tuya APP + RF 2.4GHz |
| Output Signal | SPI(TTL) x 2 |
| Scenario Mode | 44 default and 10+ customizations |
| Pixel Dots | Max. 1000 |
| EMC Standard (EMC) | ETSI EN 301 489-1 V2.2.3 ETSI EN 301 489-17 V3.2.4 |
| Operation Temperature | Ta: -30°C ~ +55°C |
| Case Temperature (Max.) | Tc: +65°C |
| Compatible remote controller | R9 (RGB/RGBW Remote) |
| App |
Tuya Android IOS |
| IP Rating | IP20 |
| Dimensions | 114 x 39 x 20mm (4.5 x 1.5 x 0.78in) |
| Certifications |
|
Feature:
- Wide Input Voltage Range: Operates with 5V to 24V DC, compatible with various LED strips.
- Remote Control Convenience: Manage lighting with the Tuya mobile app and RF 2.4GHz signal input.
- Precise Pixel Control: Accommodates up to 1000 pixel dots for intricate and accurate lighting effects.
- Versatile Compatibility: Works with 45 different LED strip types, offering customization options.
- Dynamic Scenarios: Access 44 default dynamic scenarios and create over 10 custom lighting effects.
- Music Integration: Synchronize lighting with multiple local and app-based music rhythms.
