Model	VBD-012-150DM5i1
Input Voltage	100-277V AC
Input Current	1.8A
Frequency	50-60Hz
Power Factor	>0.95
Output Voltage	12V DC
Output regulated Current	12.5A
Output Power	150W max
Dimmable	Yes (Triac/Phase/MLV/ELV/0-10V/Potentiometer/10V PWM)
IP Rating	IP67 (Dry, Damp and Wet Locations)

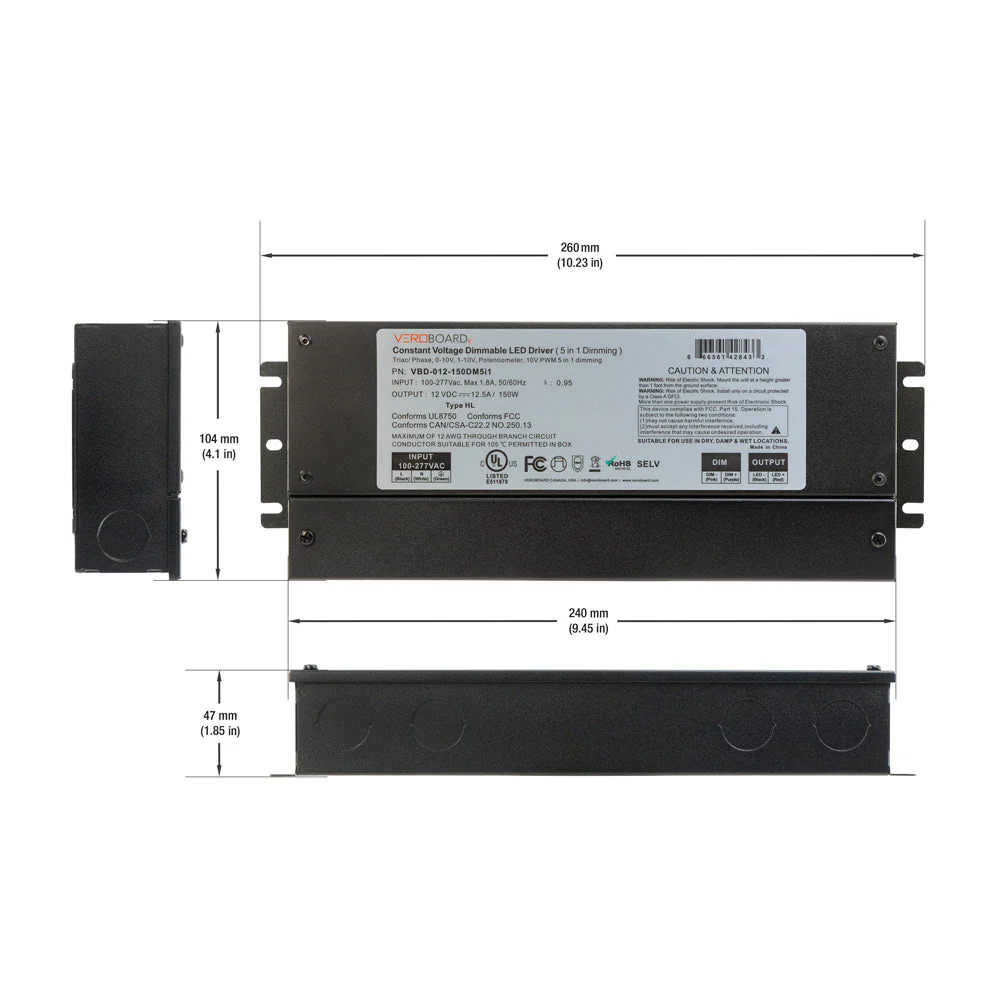

Dimensions	260mm x 104mm x 47mm (10.23in x 4.1in x 1.8in)
Certifications:

Features:

• The LED driver has a high power rating of 150W, with a regulated output voltage of 12V DC and an output current of 12.5A.
• It is designed to operate with input voltages ranging from 100-277V AC and input current of 1.8A at a frequency of 50-60Hz.
• The driver offers five dimming options, including Triac, Phase, MLV, ELV, and 0-10V, as well as Potentiometer and 10V PWM, providing a wide range of lighting control options.
• It has a high power factor of over 0.95, ensuring efficient power usage and reducing energy costs.
• The LED driver is rated IP67, making it suitable for use in dry, damp, and wet locations, and is designed to withstand harsh environmental conditions.
• The dimensions of the driver are 260mm x 104mm x 47mm (10.23in x 4.1in x 1.8in), allowing for easy installation in a variety of lighting fixtures.
• The driver is certified by UL and FCC, ensuring compliance with relevant safety and performance standards, and providing peace of mind for users.
• Overall, the VBD-012-150DM5i1 LED driver is a high-performance and versatile solution for powering LED lights in a wide range of applications, providing precise lighting control and reliable performance.
