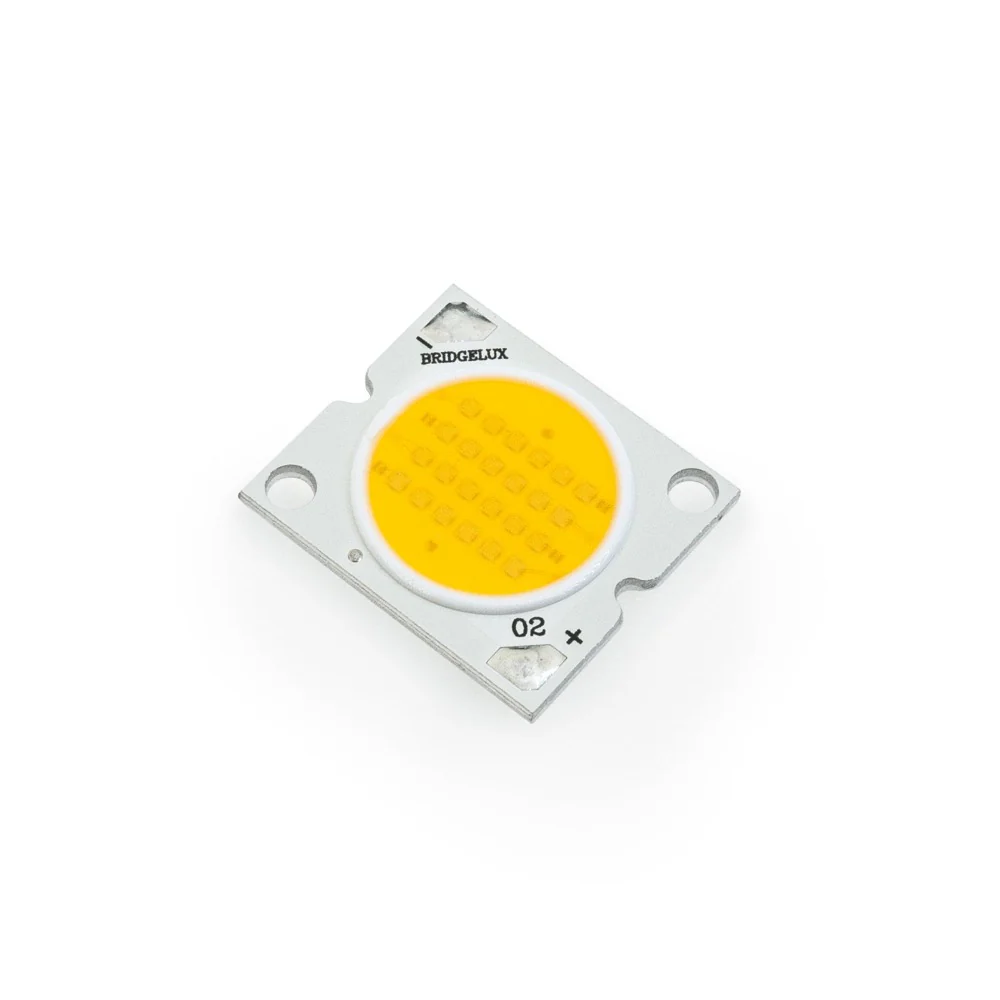

BXRA-40E2200-B Constant Current COB LED Module, 700mA 26W 4000K(Natural White)
| Model | BXRA-40E2200-B |
| Brand | Bridgelux |
| LED Type | COB |
| Wattage | 25.9W |
| Voltage | 37V |
| Current | 700mA |
| Luminous Flux | 2750 lm |
| Color Temperature | 4000K (Natural White) |
| Rendering Index | CRI>80 |
| Dimmable | Yes |
| Beam Angle | 120 |
| Dimensions | 22.30 x 25.40 x 1.5mm (0.875 x 1 x 0.05in) |
| Material | Metallic base |
Features:
- Low power consumption, high energy efficiency.
- Use Thermal Grease or Thermal Pad for installation.
- It is a good DIY product for replacing the damaged LED of any fixture of the same voltage and wattage.
- Available in different color temperatures and wattage
- Bridgelux arrays are fully engineered devices that provide consistent thermal and optical performance on an engineered mechanical platform.
- This rectangle array is a general-purpose chip-on-board device serving a wide range of applications.
- The arrays incorporate several features to simplify design integration and assembly.
| Model | BXRA-40E2200-B |
| Brand | Bridgelux |
| LED Type | COB |
| Wattage | 25.9W |
| Voltage | 37V |
| Current | 700mA |
| Luminous Flux | 2750 lm |
| Color Temperature | 4000K (Natural White) |
| Rendering Index | CRI>80 |
| Dimmable | Yes |
| Beam Angle | 120 |
| Dimensions | 22.30 x 25.40 x 1.5mm (0.875 x 1 x 0.05in) |
| Material | Metallic base |
Features:
- Low power consumption, high energy efficiency.
- Use Thermal Grease or Thermal Pad for installation.
- It is a good DIY product for replacing the damaged LED of any fixture of the same voltage and wattage.
- Available in different color temperatures and wattage
- Bridgelux arrays are fully engineered devices that provide consistent thermal and optical performance on an engineered mechanical platform.
- This rectangle array is a general-purpose chip-on-board device serving a wide range of applications.
- The arrays incorporate several features to simplify design integration and assembly.
$30.84
BXRA-40E2200-B Constant Current COB LED Module, 700mA 26W 4000K(Natural White)—
$30.84
Description
| Model | BXRA-40E2200-B |
| Brand | Bridgelux |
| LED Type | COB |
| Wattage | 25.9W |
| Voltage | 37V |
| Current | 700mA |
| Luminous Flux | 2750 lm |
| Color Temperature | 4000K (Natural White) |
| Rendering Index | CRI>80 |
| Dimmable | Yes |
| Beam Angle | 120 |
| Dimensions | 22.30 x 25.40 x 1.5mm (0.875 x 1 x 0.05in) |
| Material | Metallic base |
Features:
- Low power consumption, high energy efficiency.
- Use Thermal Grease or Thermal Pad for installation.
- It is a good DIY product for replacing the damaged LED of any fixture of the same voltage and wattage.
- Available in different color temperatures and wattage
- Bridgelux arrays are fully engineered devices that provide consistent thermal and optical performance on an engineered mechanical platform.
- This rectangle array is a general-purpose chip-on-board device serving a wide range of applications.
- The arrays incorporate several features to simplify design integration and assembly.
