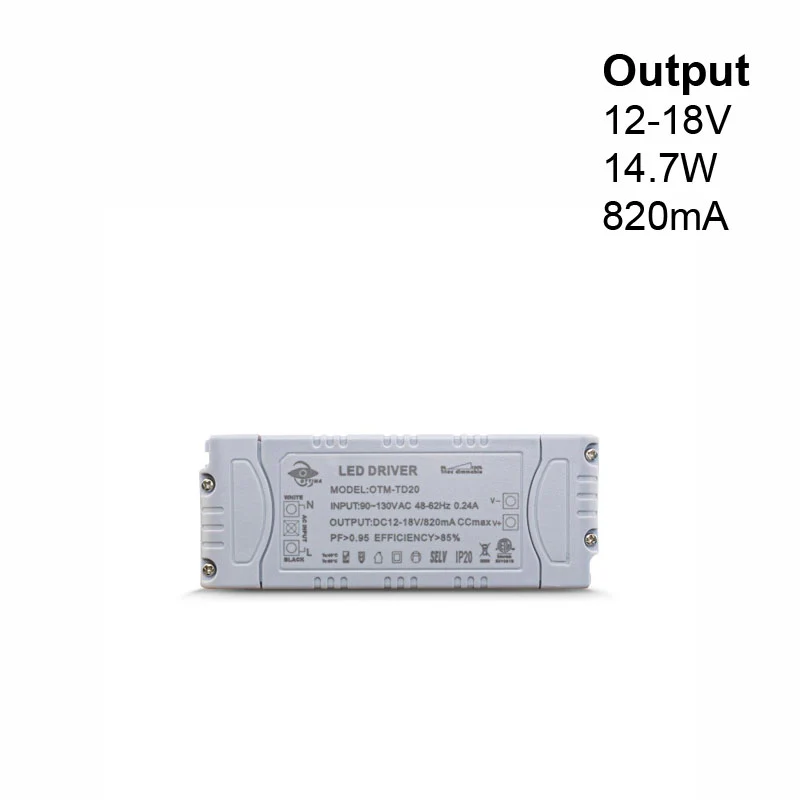

OTTIMA OTM-TD20 Constant Current Triac Dimming LED Driver 820mA 12-18V 15W
| Model | OTM-TD20 |
| Input Voltage | 90-130V AC |
| Input Current | 0.24A |
| Input Frequency | 48-62Hz |
| Power Factor | PF>0.95 |
| Efficiency | >85% |
| Output Regulated Current | 820mA |
| Output Power | 14.7W |
| Output Voltage | 12-18V DC |
| Dimmable | Yes (Triac Dimming) |
| Ambient Temperature (Ta) | 40°C |
| Case Temperature (Tc) | 90°C |
| IP Rating | IP20 (Indoor use only) |

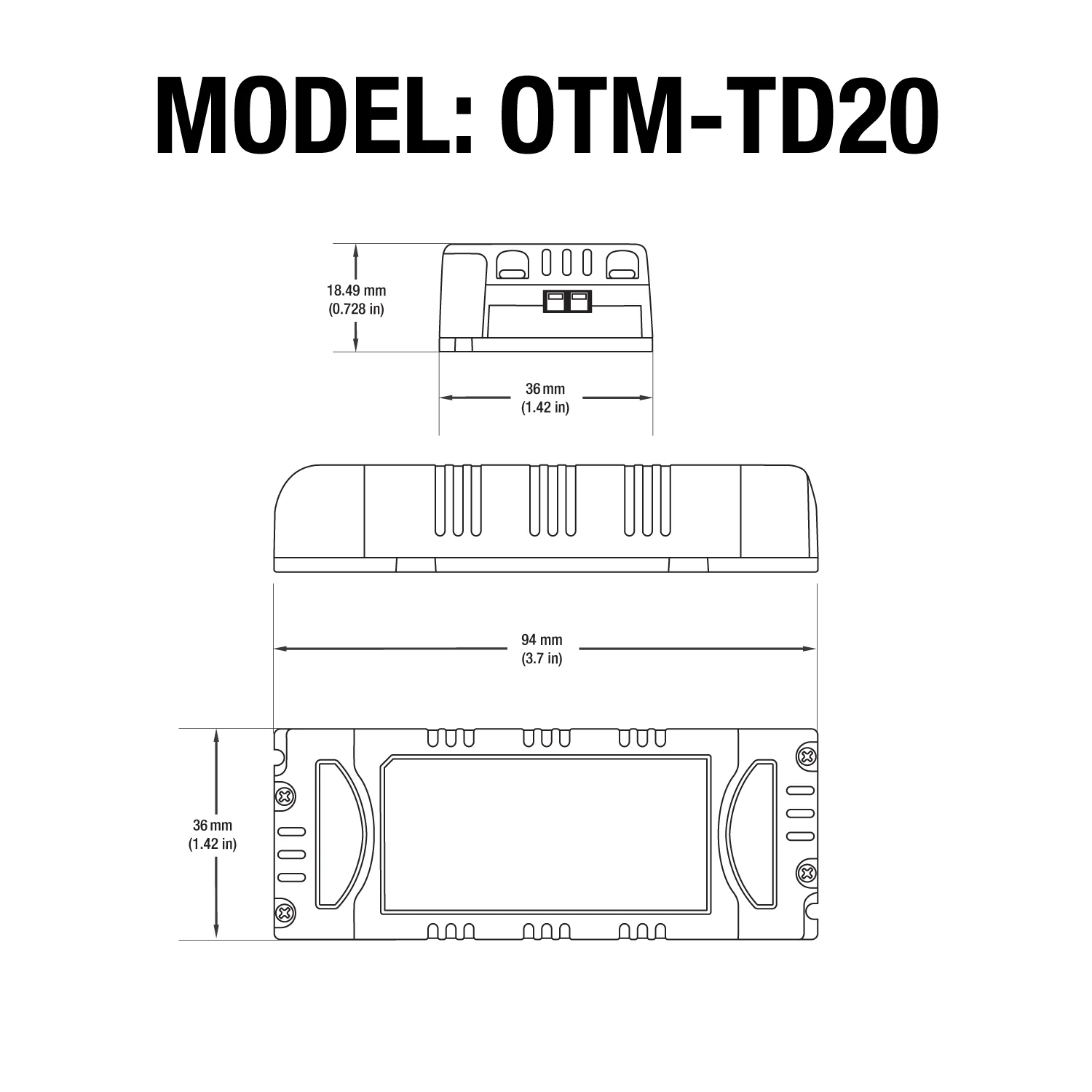

| Dimensions | 94 x 36 x 18.5 mm (3.7 x 1.42 x 0.72 in) |
| Class Certification | Class II |
| Certification |

|
Features:
- OTTIMA OTM-TD20 Constant Current LED Driver
- Regulated output current of 820mA for powering LED lights
- Input voltage range: 90-130V AC, input current: 0.24A, input frequency: 48-62Hz
- High power factor (>0.95) and efficiency (>85%)
- Maximum output power: 14.7W, output voltage: 12-18V DC
- Dimmable with Triac Dimming for adjustable lighting intensity
- IP20 rating for indoor use, protection against solid objects >12.5mm
- Operating ambient temperature: up to 40°C, maximum case temperature: 90°C
- Compact dimensions: 94 x 36 x 18.5mm (3.7 x 1.42 x 0.72 in)
- Class II classification with double insulation for added safety
- Reliable and efficient constant current LED driver for indoor lighting applications.
| Model | OTM-TD20 |
| Input Voltage | 90-130V AC |
| Input Current | 0.24A |
| Input Frequency | 48-62Hz |
| Power Factor | PF>0.95 |
| Efficiency | >85% |
| Output Regulated Current | 820mA |
| Output Power | 14.7W |
| Output Voltage | 12-18V DC |
| Dimmable | Yes (Triac Dimming) |
| Ambient Temperature (Ta) | 40°C |
| Case Temperature (Tc) | 90°C |
| IP Rating | IP20 (Indoor use only) |
| Dimensions | 94 x 36 x 18.5 mm (3.7 x 1.42 x 0.72 in) |
| Class Certification | Class II |
| Certification |
|
Features:
- OTTIMA OTM-TD20 Constant Current LED Driver
- Regulated output current of 820mA for powering LED lights
- Input voltage range: 90-130V AC, input current: 0.24A, input frequency: 48-62Hz
- High power factor (>0.95) and efficiency (>85%)
- Maximum output power: 14.7W, output voltage: 12-18V DC
- Dimmable with Triac Dimming for adjustable lighting intensity
- IP20 rating for indoor use, protection against solid objects >12.5mm
- Operating ambient temperature: up to 40°C, maximum case temperature: 90°C
- Compact dimensions: 94 x 36 x 18.5mm (3.7 x 1.42 x 0.72 in)
- Class II classification with double insulation for added safety
- Reliable and efficient constant current LED driver for indoor lighting applications.
$35.24
OTTIMA OTM-TD20 Constant Current Triac Dimming LED Driver 820mA 12-18V 15W—
$35.24
Description
| Model | OTM-TD20 |
| Input Voltage | 90-130V AC |
| Input Current | 0.24A |
| Input Frequency | 48-62Hz |
| Power Factor | PF>0.95 |
| Efficiency | >85% |
| Output Regulated Current | 820mA |
| Output Power | 14.7W |
| Output Voltage | 12-18V DC |
| Dimmable | Yes (Triac Dimming) |
| Ambient Temperature (Ta) | 40°C |
| Case Temperature (Tc) | 90°C |
| IP Rating | IP20 (Indoor use only) |
| Dimensions | 94 x 36 x 18.5 mm (3.7 x 1.42 x 0.72 in) |
| Class Certification | Class II |
| Certification |
|
Features:
- OTTIMA OTM-TD20 Constant Current LED Driver
- Regulated output current of 820mA for powering LED lights
- Input voltage range: 90-130V AC, input current: 0.24A, input frequency: 48-62Hz
- High power factor (>0.95) and efficiency (>85%)
- Maximum output power: 14.7W, output voltage: 12-18V DC
- Dimmable with Triac Dimming for adjustable lighting intensity
- IP20 rating for indoor use, protection against solid objects >12.5mm
- Operating ambient temperature: up to 40°C, maximum case temperature: 90°C
- Compact dimensions: 94 x 36 x 18.5mm (3.7 x 1.42 x 0.72 in)
- Class II classification with double insulation for added safety
- Reliable and efficient constant current LED driver for indoor lighting applications.
