Mi-Light B1 4-Zone Single Color Brightness Dimming Smart Touch Panel Remote Controller
|
Model |
B1 |
|
Voltage |
3V (2*AAA Battery) |
| Transmission Frequency | 2.4 GHz |
| Transmitting Power | 6 dBm |
| Control Distance | 30m |
| Working Temperature | -20~60°C |
| Standby Power | 20uA |

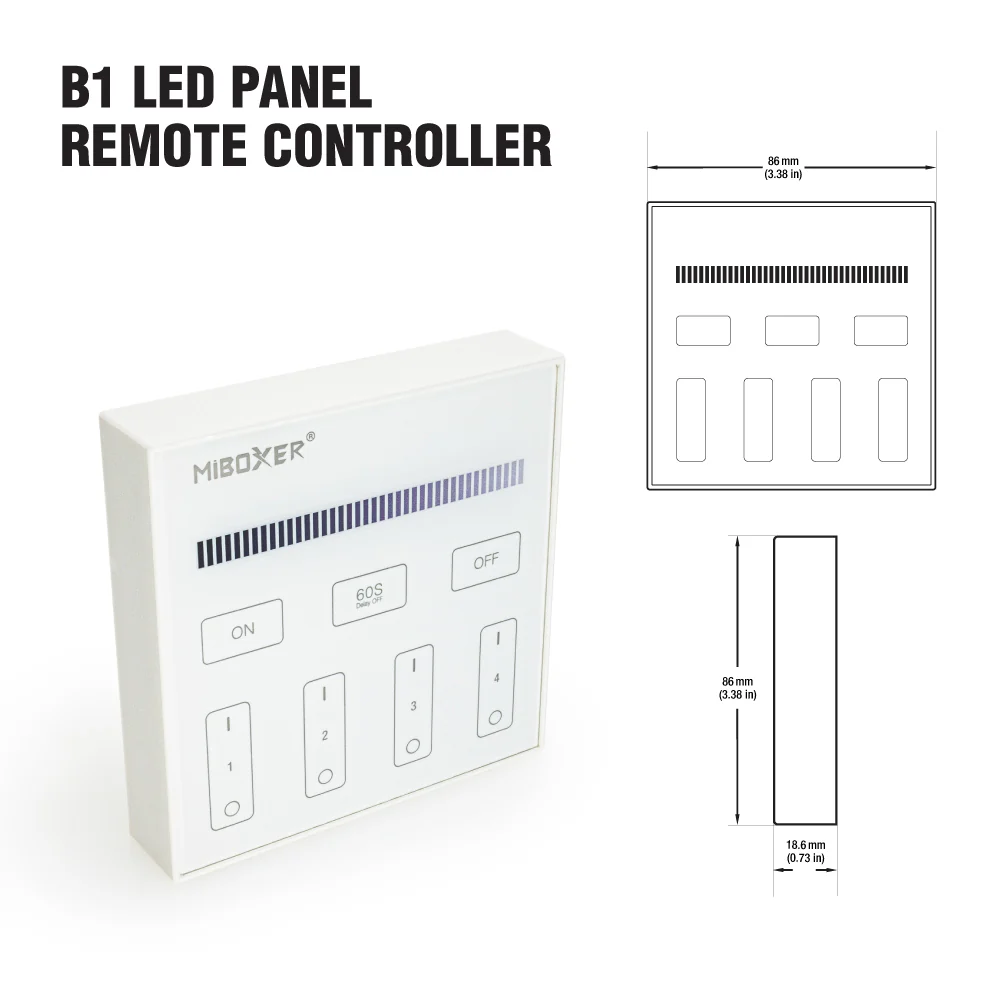

| Dimensions | 86mm (3.38 in) x 86mm (3.38in) x 19mm (0.73in) |
Features:

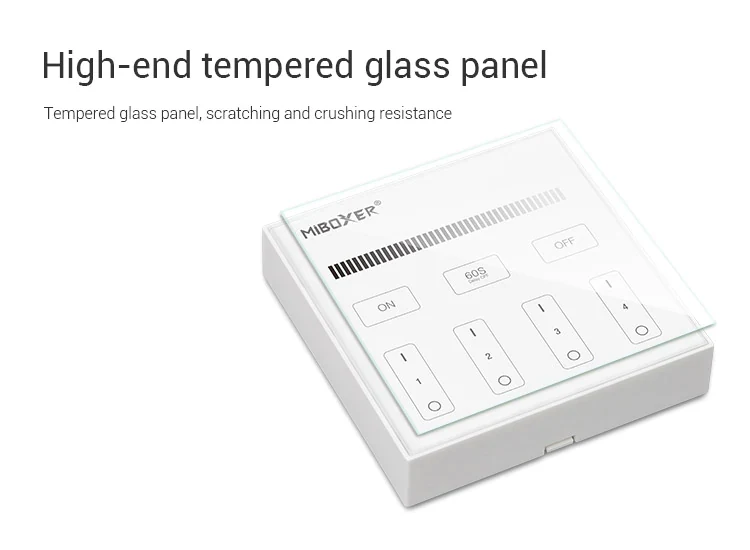

- The panel looks aesthetically appealing with its tempered glass panel and touch screen IC.

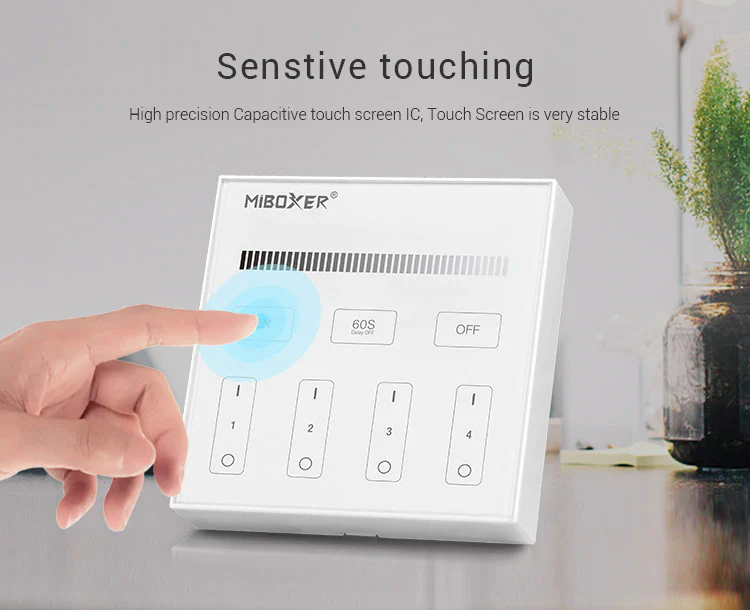

- The panel has a high-precision touch screen and can be used in both residential and commercial applications like big/small businesses, hotels, stores, restaurants, etc.
- This panel remote controller is the best solution to switch on/off all different lights through 1 switch particularly with regard to children's room or staircase lighting.
- MiBoxer remote controller has the feature of choosing a different range of dimming and switching lights at different zone.
- Easily saves energy and decreases power consumption, allowing us to receive reasonable electricity bills.
Link: Turn off the power, then turn on again 5 seconds, press ”I” 3 times within 3 seconds. The Led light blinks 3 times slowly when it is done.
Unlink: Turn off the power, then turn on again after 5 seconds, press “I” 5 times within 3 seconds. The Led light blinks 10 times swiftly when it is done.
|
Model |
B1 |
|
Voltage |
3V (2*AAA Battery) |
| Transmission Frequency | 2.4 GHz |
| Transmitting Power | 6 dBm |
| Control Distance | 30m |
| Working Temperature | -20~60°C |
| Standby Power | 20uA |
| Dimensions | 86mm (3.38 in) x 86mm (3.38in) x 19mm (0.73in) |
Features:
- The panel looks aesthetically appealing with its tempered glass panel and touch screen IC.
- The panel has a high-precision touch screen and can be used in both residential and commercial applications like big/small businesses, hotels, stores, restaurants, etc.
- This panel remote controller is the best solution to switch on/off all different lights through 1 switch particularly with regard to children's room or staircase lighting.
- MiBoxer remote controller has the feature of choosing a different range of dimming and switching lights at different zone.
- Easily saves energy and decreases power consumption, allowing us to receive reasonable electricity bills.
Link: Turn off the power, then turn on again 5 seconds, press ”I” 3 times within 3 seconds. The Led light blinks 3 times slowly when it is done.
Unlink: Turn off the power, then turn on again after 5 seconds, press “I” 5 times within 3 seconds. The Led light blinks 10 times swiftly when it is done.
