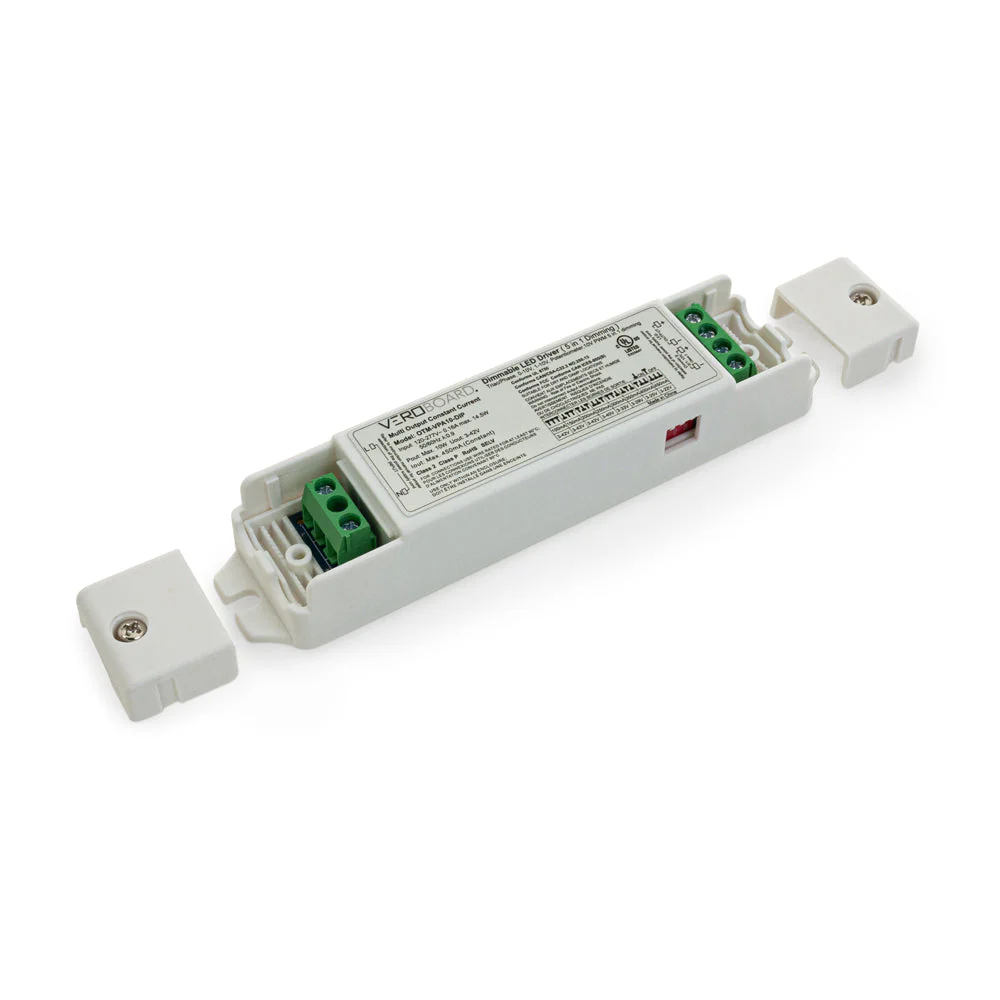

OTM-VPA10-DIP Selectable Constant Current LED Driver (5 in 1 Dimming) 100mA~450mA 3-42V 10W
| Model | OTM-VPA10-DIP |
| Input Voltage | 120-277V AC |
| Input Wattage | 14.5W |
| Input Current | 0.16A |
| Input Frequency | 50/60 Hz |
| Output Voltage | 3-42V |
| Output Power | 10W max |

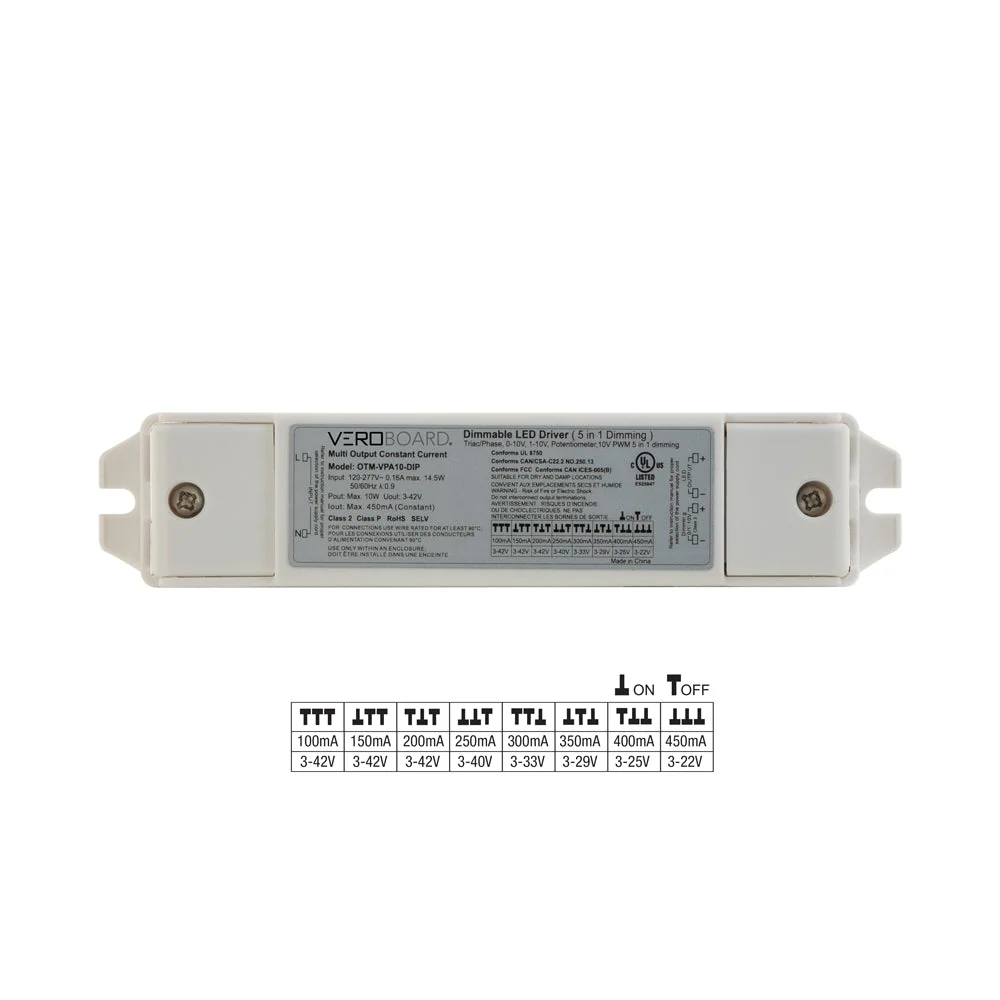

| Output Regulated Current | 100mA, 150mA, 200mA, 250mA, 350mA, 400mA, 450mA |
| Dimmable | Yes (Triac/Phase, 0-10V, 1-10V, Potentiometer, 10V PWM 5 in 1 Dimming) |
| IP Rating | IP20 (Indoor Rated) |
| Dimensions | 120.42 x 29.80 x 20.15mm (4.74 x 1.17 x 0.79 in) |
| Class Certification | Class 2, Class P |
| Certification |
  |
Features:
- Operates on a wide input voltage range of 120-277V AC, ensuring compatibility with diverse electrical systems.
- Low input current of 0.16A and a frequency of 50/60 Hz optimize energy consumption while maintaining a stable power supply.
- Offers a versatile output voltage range from 3-42V, accommodating various LED configurations for customized lighting solutions.
- Enhances control with dimmable options supporting Triac/Phase, 0-10V, 1-10V, Potentiometer, and 10V PWM 5 in 1 dimming choices.
- Designed for indoor use with an IP20 rating, ensuring reliability in various indoor environments.
| Model | OTM-VPA10-DIP |
| Input Voltage | 120-277V AC |
| Input Wattage | 14.5W |
| Input Current | 0.16A |
| Input Frequency | 50/60 Hz |
| Output Voltage | 3-42V |
| Output Power | 10W max |
| Output Regulated Current | 100mA, 150mA, 200mA, 250mA, 350mA, 400mA, 450mA |
| Dimmable | Yes (Triac/Phase, 0-10V, 1-10V, Potentiometer, 10V PWM 5 in 1 Dimming) |
| IP Rating | IP20 (Indoor Rated) |
| Dimensions | 120.42 x 29.80 x 20.15mm (4.74 x 1.17 x 0.79 in) |
| Class Certification | Class 2, Class P |
| Certification |
|
Features:
- Operates on a wide input voltage range of 120-277V AC, ensuring compatibility with diverse electrical systems.
- Low input current of 0.16A and a frequency of 50/60 Hz optimize energy consumption while maintaining a stable power supply.
- Offers a versatile output voltage range from 3-42V, accommodating various LED configurations for customized lighting solutions.
- Enhances control with dimmable options supporting Triac/Phase, 0-10V, 1-10V, Potentiometer, and 10V PWM 5 in 1 dimming choices.
- Designed for indoor use with an IP20 rating, ensuring reliability in various indoor environments.
$17.40
Original: $58.00
-70%OTM-VPA10-DIP Selectable Constant Current LED Driver (5 in 1 Dimming) 100mA~450mA 3-42V 10W—
$58.00
$17.40Description
| Model | OTM-VPA10-DIP |
| Input Voltage | 120-277V AC |
| Input Wattage | 14.5W |
| Input Current | 0.16A |
| Input Frequency | 50/60 Hz |
| Output Voltage | 3-42V |
| Output Power | 10W max |
| Output Regulated Current | 100mA, 150mA, 200mA, 250mA, 350mA, 400mA, 450mA |
| Dimmable | Yes (Triac/Phase, 0-10V, 1-10V, Potentiometer, 10V PWM 5 in 1 Dimming) |
| IP Rating | IP20 (Indoor Rated) |
| Dimensions | 120.42 x 29.80 x 20.15mm (4.74 x 1.17 x 0.79 in) |
| Class Certification | Class 2, Class P |
| Certification |
|
Features:
- Operates on a wide input voltage range of 120-277V AC, ensuring compatibility with diverse electrical systems.
- Low input current of 0.16A and a frequency of 50/60 Hz optimize energy consumption while maintaining a stable power supply.
- Offers a versatile output voltage range from 3-42V, accommodating various LED configurations for customized lighting solutions.
- Enhances control with dimmable options supporting Triac/Phase, 0-10V, 1-10V, Potentiometer, and 10V PWM 5 in 1 dimming choices.
- Designed for indoor use with an IP20 rating, ensuring reliability in various indoor environments.
