AD-107T-2.2W-12V Square Cabinet Light, 12V 2.2W 3000K(Warm White)
| Model | AD107T-2.2W-12V |
| Trim Model | PKL-TRB-BN-SQ |
| Input Voltage | 12V DC |
| Input Current | 180mA |
| Power | 2.2W |
| Color Temperature | 3000K (Warm White) |
| Brightness | 170 lumens |
| Dimmable | Yes |
| Rendering Index | CRI>90 |
| Beam Angle | 115° |
| Engine Material | PVC |
| Trim Material | Die-cast Aluminum |
| Trim Color Finish | Brushed Nickel |
| IP Rating | IP20 (Dry and Damp locations) |
| Wire length | 39 inches (1 meter) |
| Installation | Surface Mount |
| Dimensions | 75 x 75 x 6.50 mm (2.95 x 2.95 x 0.25 in) |

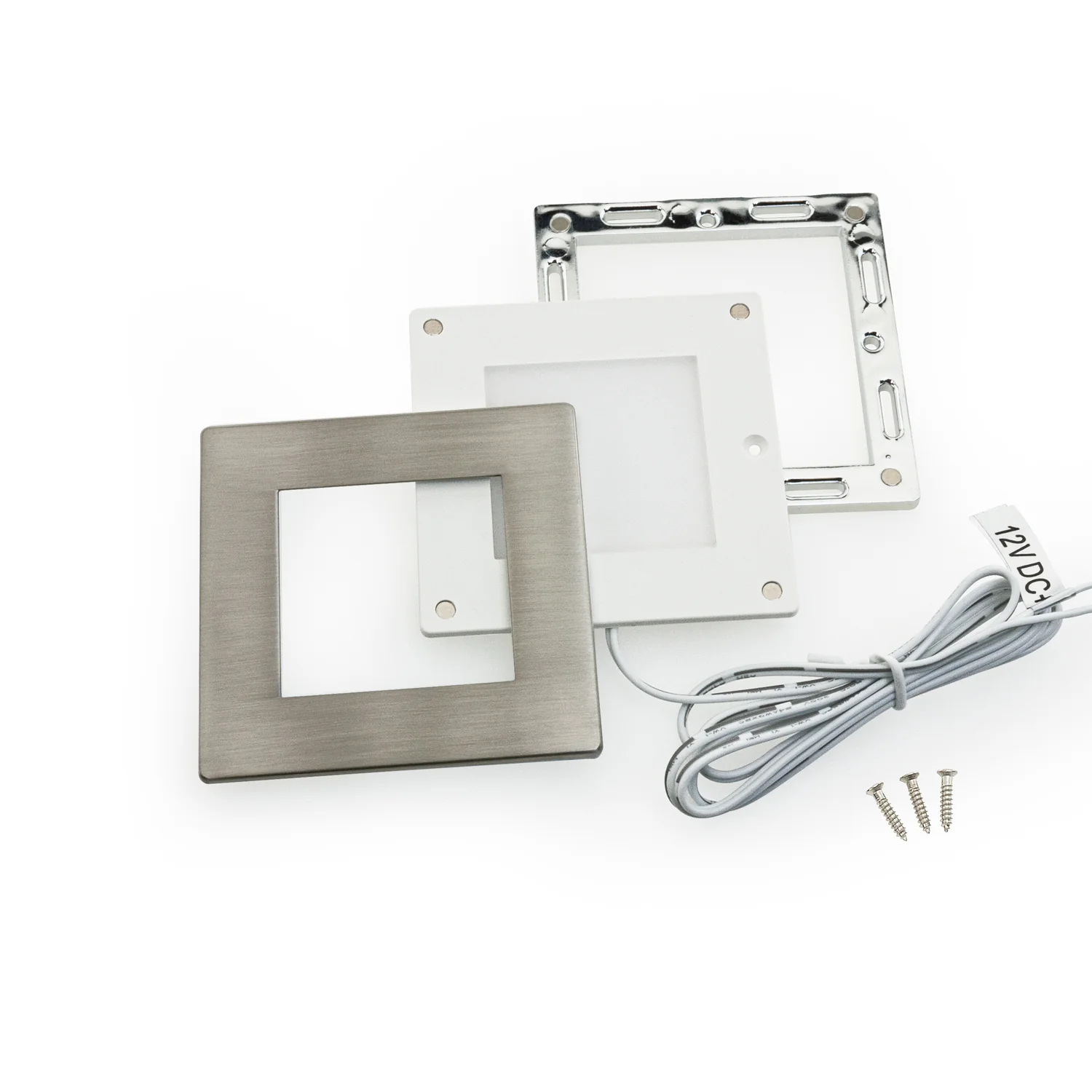

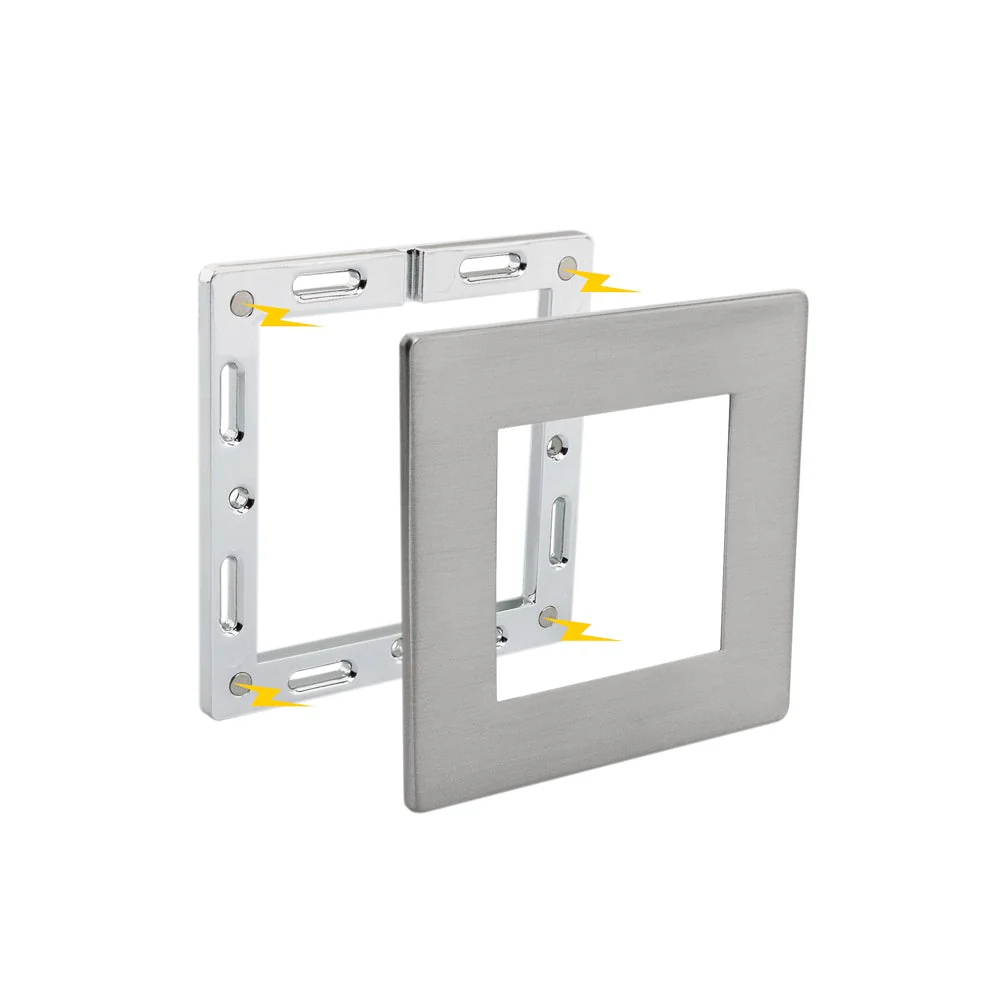

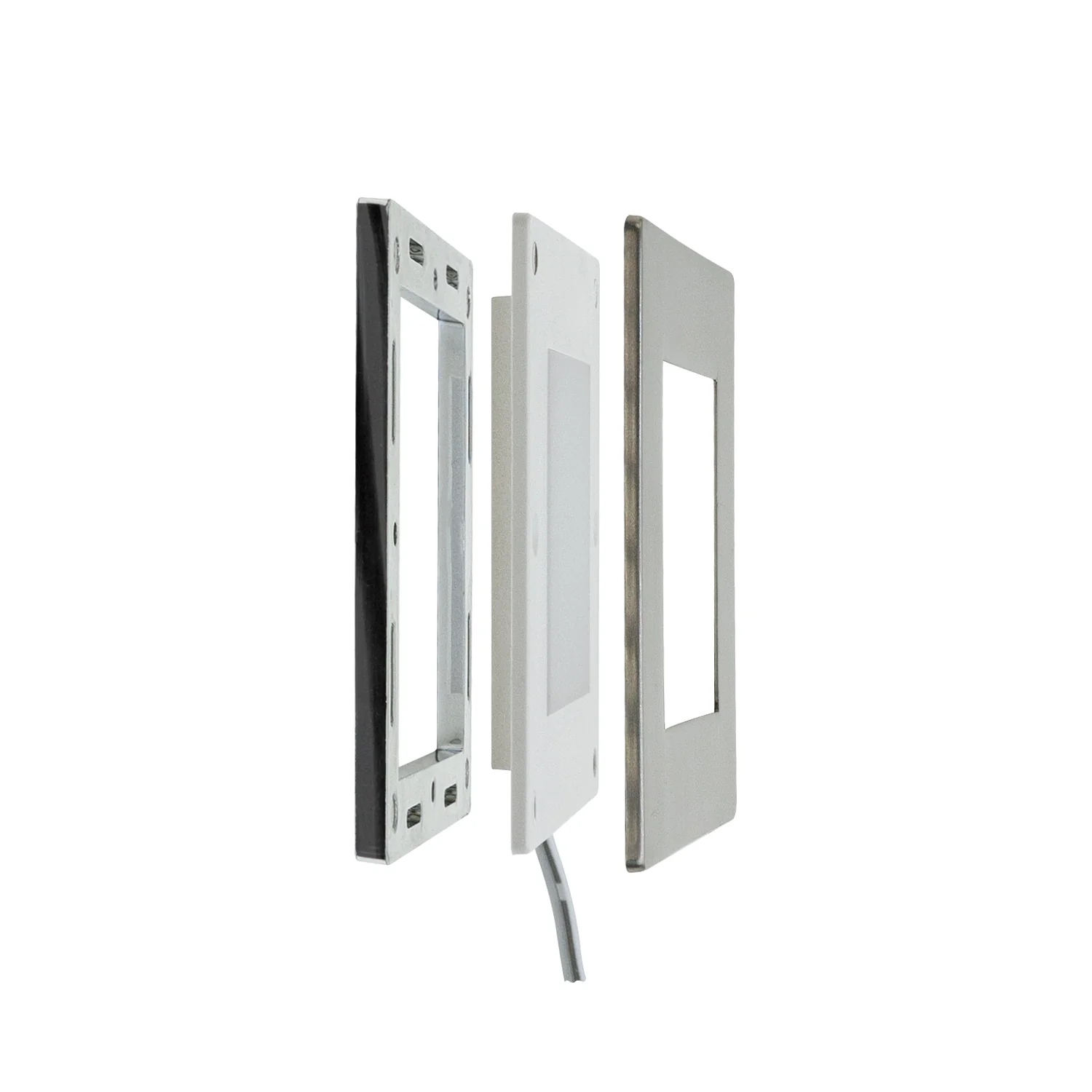

| Included Content | Square engine, Magnetic-Base with screws, Interchangeable trim |
| Certification |  |
Features
- Low power consumption, high energy efficiency
- Widely applied in wardrobe, cabinet, shelves of a modern kitchen
- Rated CRI>90 and meets the Canadian and United States standards with UL STD 153, STD. C22.2
- Protection from a large part of the body such as a hand having an IP 20 rating
- Applicable for Damp and DRY locations.
- Dimmer control must have the same input rating as the dimmable power supply driver it connects to.
- It is also compatible with other low voltage dimmers
- Available in White, Black, and Brushed Nickel finish trims.
- Have 2 years of store warranty.
- Contact us for assistance with any of our quality products if required.
| Model | AD107T-2.2W-12V |
| Trim Model | PKL-TRB-BN-SQ |
| Input Voltage | 12V DC |
| Input Current | 180mA |
| Power | 2.2W |
| Color Temperature | 3000K (Warm White) |
| Brightness | 170 lumens |
| Dimmable | Yes |
| Rendering Index | CRI>90 |
| Beam Angle | 115° |
| Engine Material | PVC |
| Trim Material | Die-cast Aluminum |
| Trim Color Finish | Brushed Nickel |
| IP Rating | IP20 (Dry and Damp locations) |
| Wire length | 39 inches (1 meter) |
| Installation | Surface Mount |
| Dimensions | 75 x 75 x 6.50 mm (2.95 x 2.95 x 0.25 in) |
| Included Content | Square engine, Magnetic-Base with screws, Interchangeable trim |
| Certification | |
Features
- Low power consumption, high energy efficiency
- Widely applied in wardrobe, cabinet, shelves of a modern kitchen
- Rated CRI>90 and meets the Canadian and United States standards with UL STD 153, STD. C22.2
- Protection from a large part of the body such as a hand having an IP 20 rating
- Applicable for Damp and DRY locations.
- Dimmer control must have the same input rating as the dimmable power supply driver it connects to.
- It is also compatible with other low voltage dimmers
- Available in White, Black, and Brushed Nickel finish trims.
- Have 2 years of store warranty.
- Contact us for assistance with any of our quality products if required.
