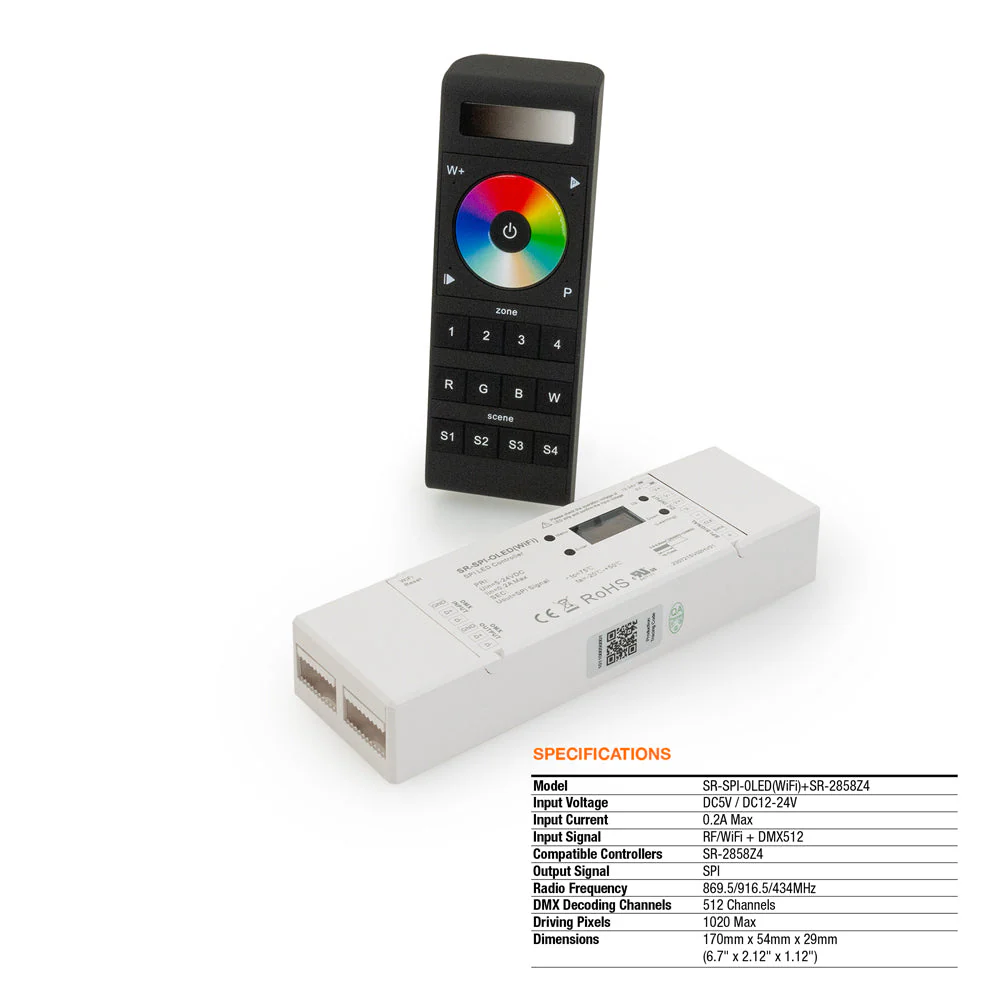

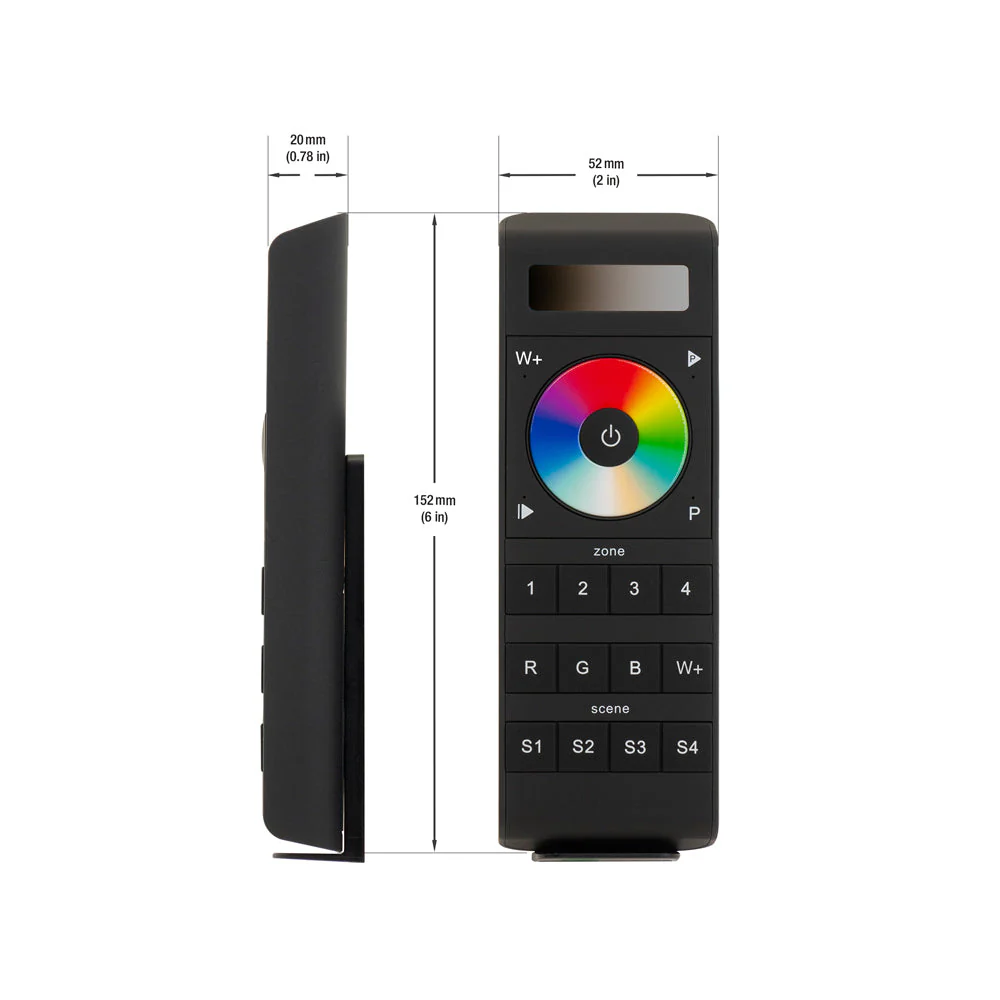

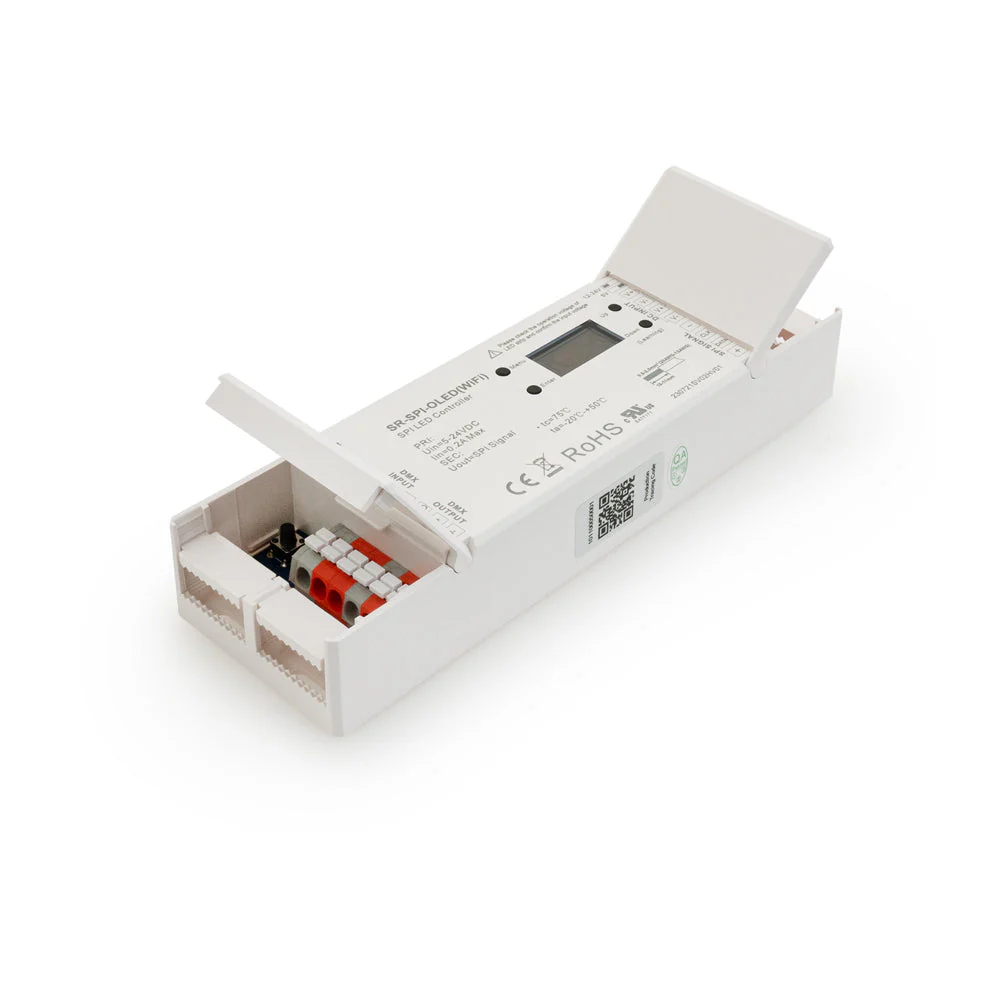

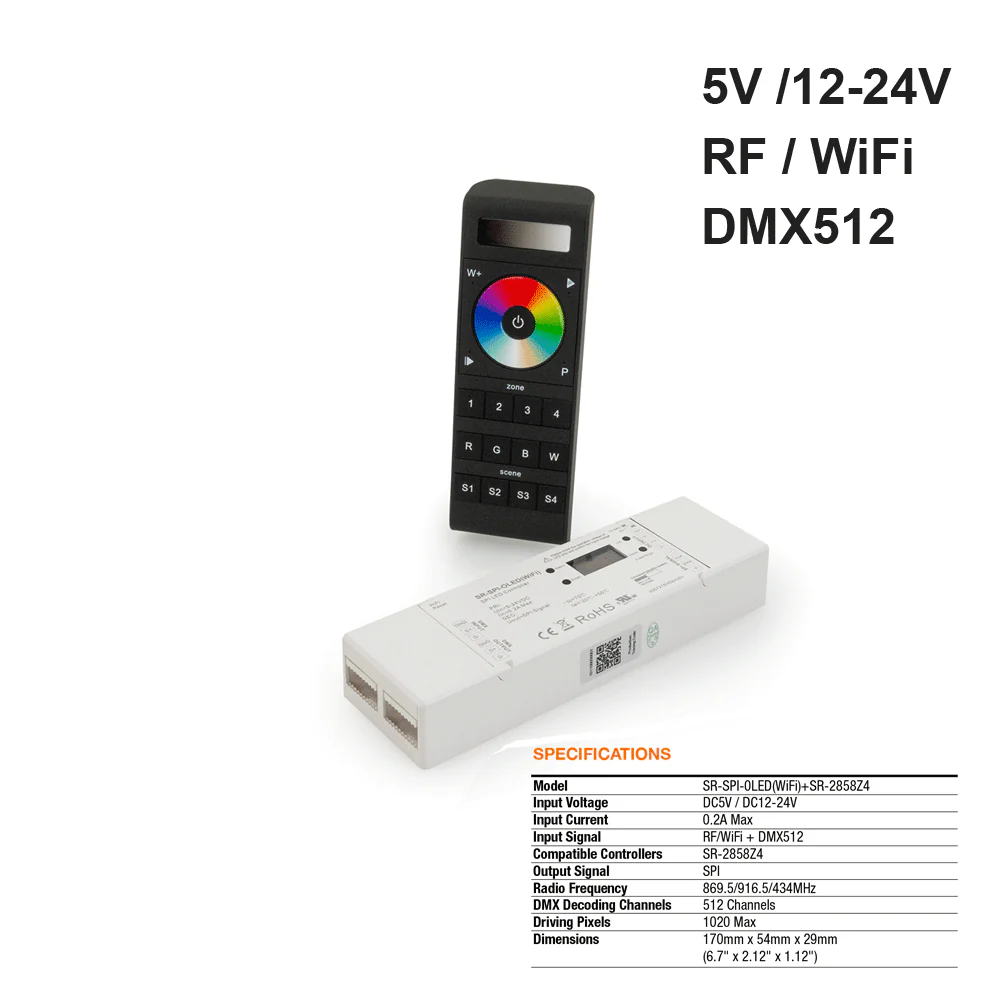

SR-SPI-OLED(WiFi) DMX LED Light Receiver with SR-2858Z4 Remote Controller, 5-24V DC
| Model | SR-SPI-OLED(WiFi)+SR-2858Z4 |
| Input Voltage | DC5V / DC12-24V |
| Input Current | 0.2A Max. |
| Input Signal | RF/WiFi + DMX512 |
| Output Signal | SPI |
| Radio frequency | 869.5/916.5/434MHz |
| DMX Decoding Channels | 512 Channels |
| Driving Pixels | Max. 1020 |
| Package content | SR-SPI-0LED(WiFi) SR-2858Z4 |
| App |
<<Download Manual>> Android IOS |

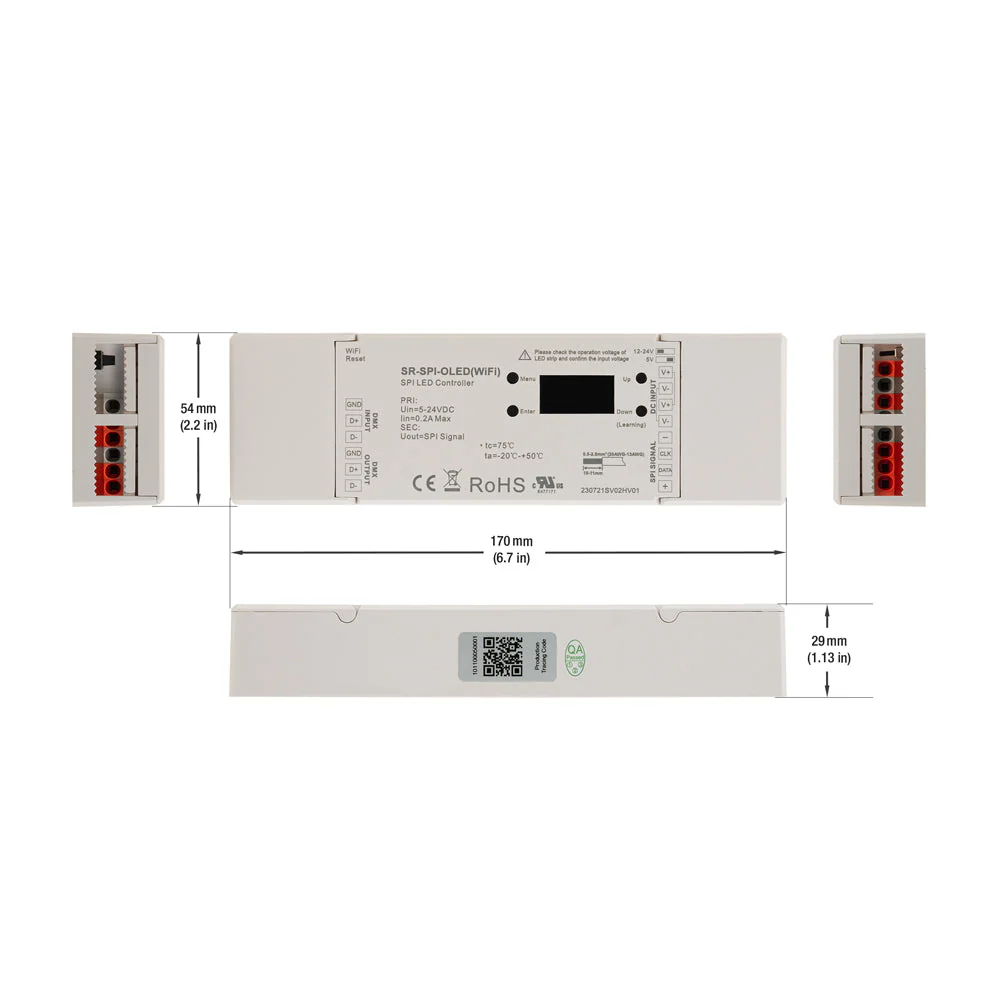

| Dimensions | 170 x 53.4 x 28mm (6.6 x 2.1 x 1.1in) |
| Certifications |

|
Feature:
- Integrate SR-SPI-OLED(WiFi) controller with SR-2858Z4 LED Light Receiver for advanced LED control.
- Manage RGB/RGBW LED strip lights effortlessly with SPI technology and OLED panel.
- Controller fits various setups with dimensions of 170 x 53.4 x 28mm.
- Supports DC5V to DC12-24V input voltage, up to 0.2A Max input current.
- RF/WiFi and DMX512 input signals, with multiple RF frequency options.
- Drive up to 1020 pixels, compatible with 38 driving IC types.
- Configure pixel quantity, IC type, and 7 RGB/RGBW color order options.
- Access 35 dynamic color sequences through RF remotes or dedicated apps.
- Switch to DMX mode, support up to 512 decoding channels, easy DMX address configuration via OLED display.
| Model | SR-SPI-OLED(WiFi)+SR-2858Z4 |
| Input Voltage | DC5V / DC12-24V |
| Input Current | 0.2A Max. |
| Input Signal | RF/WiFi + DMX512 |
| Output Signal | SPI |
| Radio frequency | 869.5/916.5/434MHz |
| DMX Decoding Channels | 512 Channels |
| Driving Pixels | Max. 1020 |
| Package content | SR-SPI-0LED(WiFi) SR-2858Z4 |
| App |
<<Download Manual>> Android IOS |
| Dimensions | 170 x 53.4 x 28mm (6.6 x 2.1 x 1.1in) |
| Certifications |
|
Feature:
- Integrate SR-SPI-OLED(WiFi) controller with SR-2858Z4 LED Light Receiver for advanced LED control.
- Manage RGB/RGBW LED strip lights effortlessly with SPI technology and OLED panel.
- Controller fits various setups with dimensions of 170 x 53.4 x 28mm.
- Supports DC5V to DC12-24V input voltage, up to 0.2A Max input current.
- RF/WiFi and DMX512 input signals, with multiple RF frequency options.
- Drive up to 1020 pixels, compatible with 38 driving IC types.
- Configure pixel quantity, IC type, and 7 RGB/RGBW color order options.
- Access 35 dynamic color sequences through RF remotes or dedicated apps.
- Switch to DMX mode, support up to 512 decoding channels, easy DMX address configuration via OLED display.
