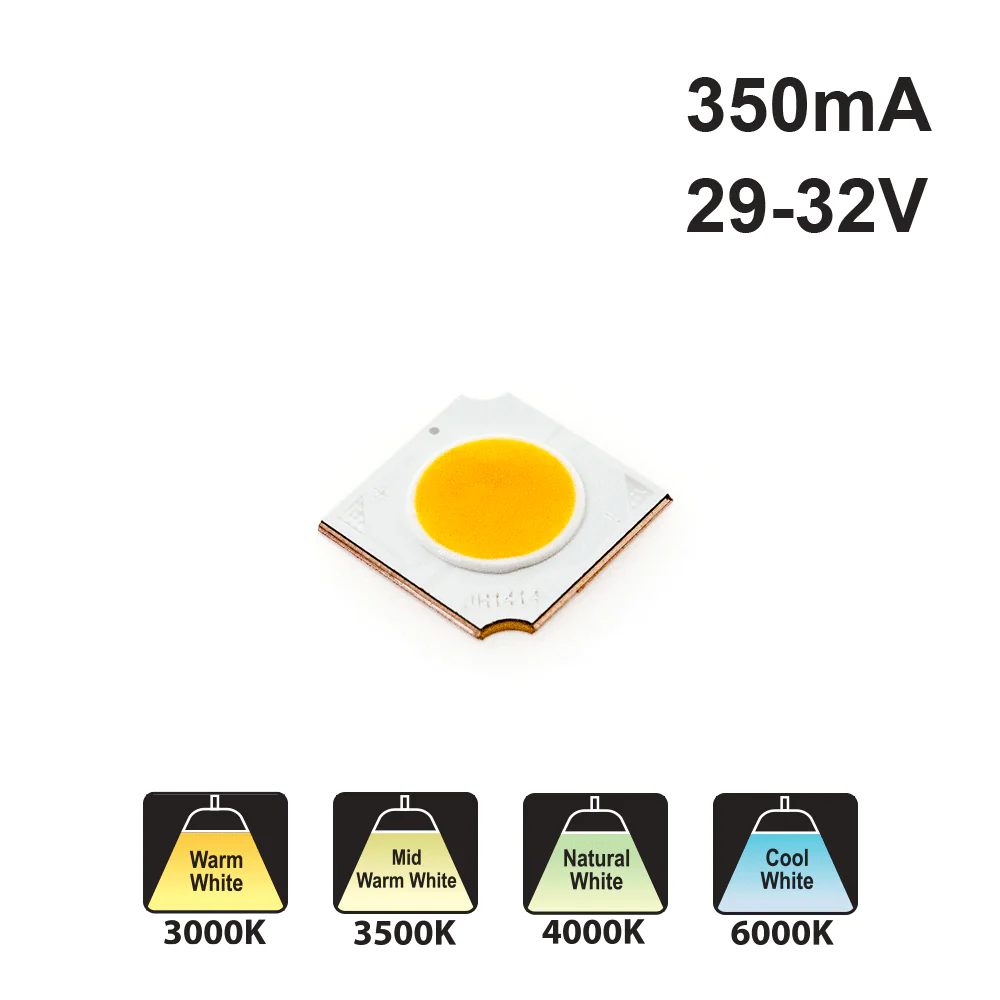

Constant Current COB LED Module, 350mA 10W CCT(3K, 3.5K, 4K, 6K)

Product image 1
1 / 4

Constant Current COB LED Module, 350mA 10W CCT(3K, 3.5K, 4K, 6K)


 Model No 10WW14E33-Y6C (For 3000K, 3500K)
10W14E33-Y6C (For 4000K, 6000K)
Voltage 29-31V (For 3000K)
30-32V (For 3500K, 4000K, 6000K)
Wattage 10W
Current 350mA
Available Color Temperature 3000K(Warm White)
3500K (Mid-Warm White)
4000K (Natural Light)
6000K (Cool White)
Luminous Flux 700-800lm (For 3500K, 4000K, 6000K) & 600-700lm (For 3000K)
Material Metallic base

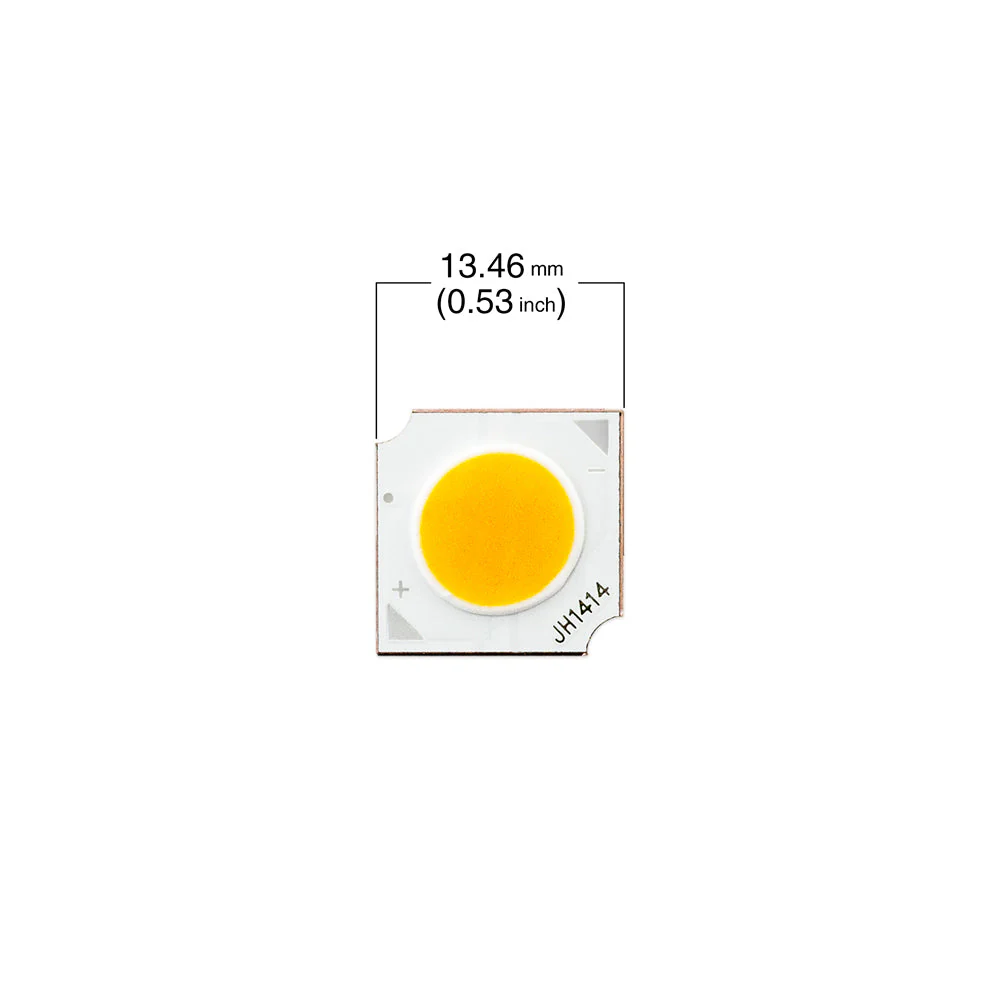

Dimensions 13.4  x 13.4 x 1.5mm (0.5 x 0.5 x 0.05inch)




Features:

  • High-quality lighting solution delivering bright and efficient illumination
  • Available in two different models: 10WW14E33-Y6C for 3000K and 3500K color temperatures, and 10W14E33-Y6C for 4000K and 6000K color temperatures
  • Wattage of 10W, operates at a current of 350mA, and has a voltage range of 29-31V DC for the 3000K model and 30-32V DC for the 3500K, 4000K, and 6000K models
  • Luminous flux output of 600-700 lumens for the 3000K model and 700-800 lumens for the 3500K, 4000K, and 6000K models
  • Designed with a metallic base and has dimensions of 13.4 mm x 13.4 mm (0.5 inch x 0.5 inch)
  • Use Thermal Grease or Thermal Pad for installation.


     Model No 10WW14E33-Y6C (For 3000K, 3500K)
    10W14E33-Y6C (For 4000K, 6000K)
    Voltage 29-31V (For 3000K)
    30-32V (For 3500K, 4000K, 6000K)
    Wattage 10W
    Current 350mA
    Available Color Temperature 3000K(Warm White)
    3500K (Mid-Warm White)
    4000K (Natural Light)
    6000K (Cool White)
    Luminous Flux 700-800lm (For 3500K, 4000K, 6000K) & 600-700lm (For 3000K)
    Material Metallic base
    Dimensions 13.4  x 13.4 x 1.5mm (0.5 x 0.5 x 0.05inch)




    Features:

    • High-quality lighting solution delivering bright and efficient illumination
    • Available in two different models: 10WW14E33-Y6C for 3000K and 3500K color temperatures, and 10W14E33-Y6C for 4000K and 6000K color temperatures
    • Wattage of 10W, operates at a current of 350mA, and has a voltage range of 29-31V DC for the 3000K model and 30-32V DC for the 3500K, 4000K, and 6000K models
    • Luminous flux output of 600-700 lumens for the 3000K model and 700-800 lumens for the 3500K, 4000K, and 6000K models
    • Designed with a metallic base and has dimensions of 13.4 mm x 13.4 mm (0.5 inch x 0.5 inch)
    • Use Thermal Grease or Thermal Pad for installation.
      Select Select Color Temperature
      From $3.52

      Original: $11.75

      -70%
      Constant Current COB LED Module, 350mA 10W CCT(3K, 3.5K, 4K, 6K)—

      $11.75

      $3.52

      Description


       Model No 10WW14E33-Y6C (For 3000K, 3500K)
      10W14E33-Y6C (For 4000K, 6000K)
      Voltage 29-31V (For 3000K)
      30-32V (For 3500K, 4000K, 6000K)
      Wattage 10W
      Current 350mA
      Available Color Temperature 3000K(Warm White)
      3500K (Mid-Warm White)
      4000K (Natural Light)
      6000K (Cool White)
      Luminous Flux 700-800lm (For 3500K, 4000K, 6000K) & 600-700lm (For 3000K)
      Material Metallic base
      Dimensions 13.4  x 13.4 x 1.5mm (0.5 x 0.5 x 0.05inch)




      Features:

      • High-quality lighting solution delivering bright and efficient illumination
      • Available in two different models: 10WW14E33-Y6C for 3000K and 3500K color temperatures, and 10W14E33-Y6C for 4000K and 6000K color temperatures
      • Wattage of 10W, operates at a current of 350mA, and has a voltage range of 29-31V DC for the 3000K model and 30-32V DC for the 3500K, 4000K, and 6000K models
      • Luminous flux output of 600-700 lumens for the 3000K model and 700-800 lumens for the 3500K, 4000K, and 6000K models
      • Designed with a metallic base and has dimensions of 13.4 mm x 13.4 mm (0.5 inch x 0.5 inch)
      • Use Thermal Grease or Thermal Pad for installation.
