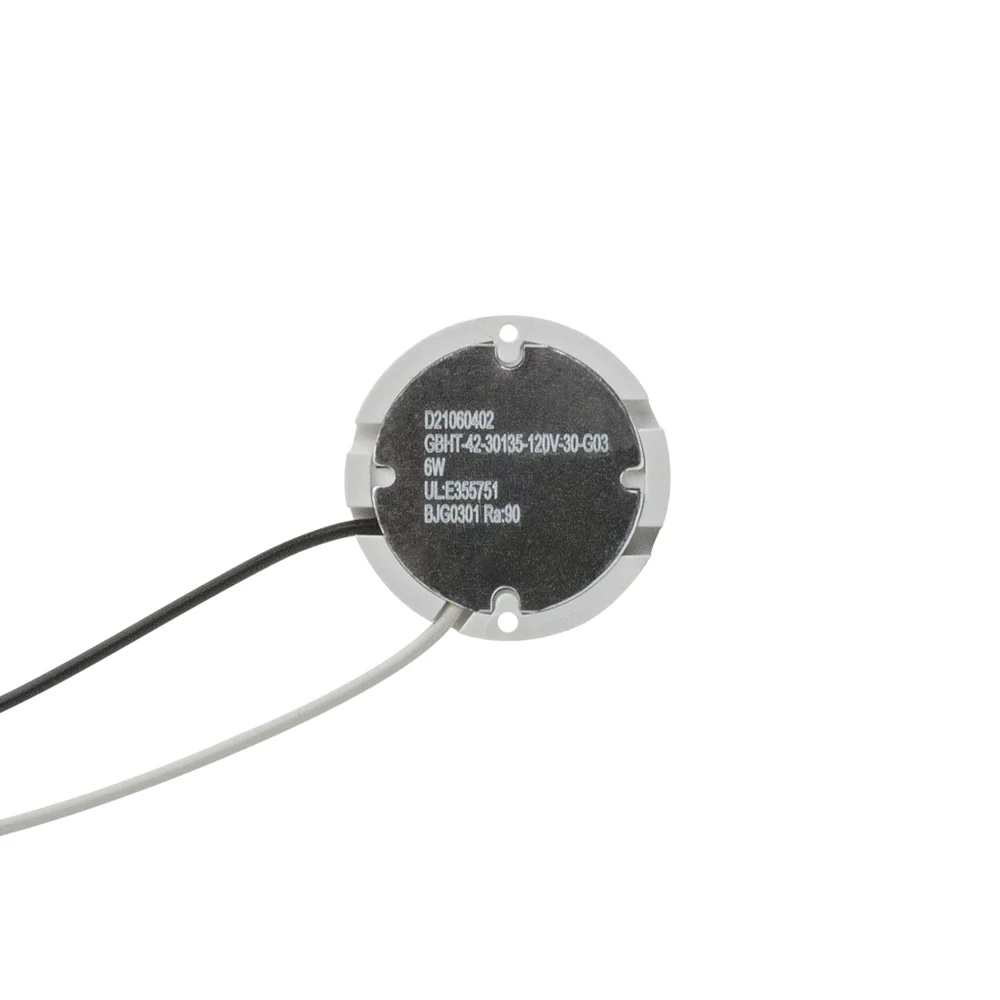

CBHT-42-30135-120V-30-G03 COB Paragon LED Module with GHH36135AC LED Holder, 120V 6W 3000K
| Model No | CBHT-42-30135-120V-30-G03 |
| COB Holder Model No | GHH36135AC |
|
LED Type |
COB LED |
| No LED chips | 42 |
| Wattage | 6W |
| Voltage | 120V AC |
| Power Factor | PF>0.98 |
| Luminous Intensity | 420 lumens |
| Color Temperature | 3000K (Warm White) |
| Dimmable | Yes |
| Rendering Index | CRI>90 |
| IP Rating | IP20 (Indoor rated) |
| COB Holder Dimensions | ∅36mm (1.4 in) x H11.60mm (0.45 in) |
| COB Module Outer Diameter | ∅27 mm (1.06 in) |
| Operating Temperature | -40 ~ +105℃ |
| Storage Temperature | -40 ~ +105℃ |
| Assembly process Temperature | <300℃ |
| Solder joint point | <105℃ |
| Dielectric Breakdown Voltage of Thermal Pad | >4KV |
| Included Content | COB Module, COB LED Array Holder, Thermal Pad |
| Certifications |  |
Features:
- Low power consumption and high energy efficiency.
- Suitable for damp locations.
- Requires an aluminum heat sink to prevent overheating, which can cause serious luminous decay.
- COB LEDs are brighter, consume less power, and provide higher quality beam output compared to older LED technologies.
- It is important to ground light fixtures while designing lamps.
- COB LEDs are commonly used in almost every kind of luminaire.

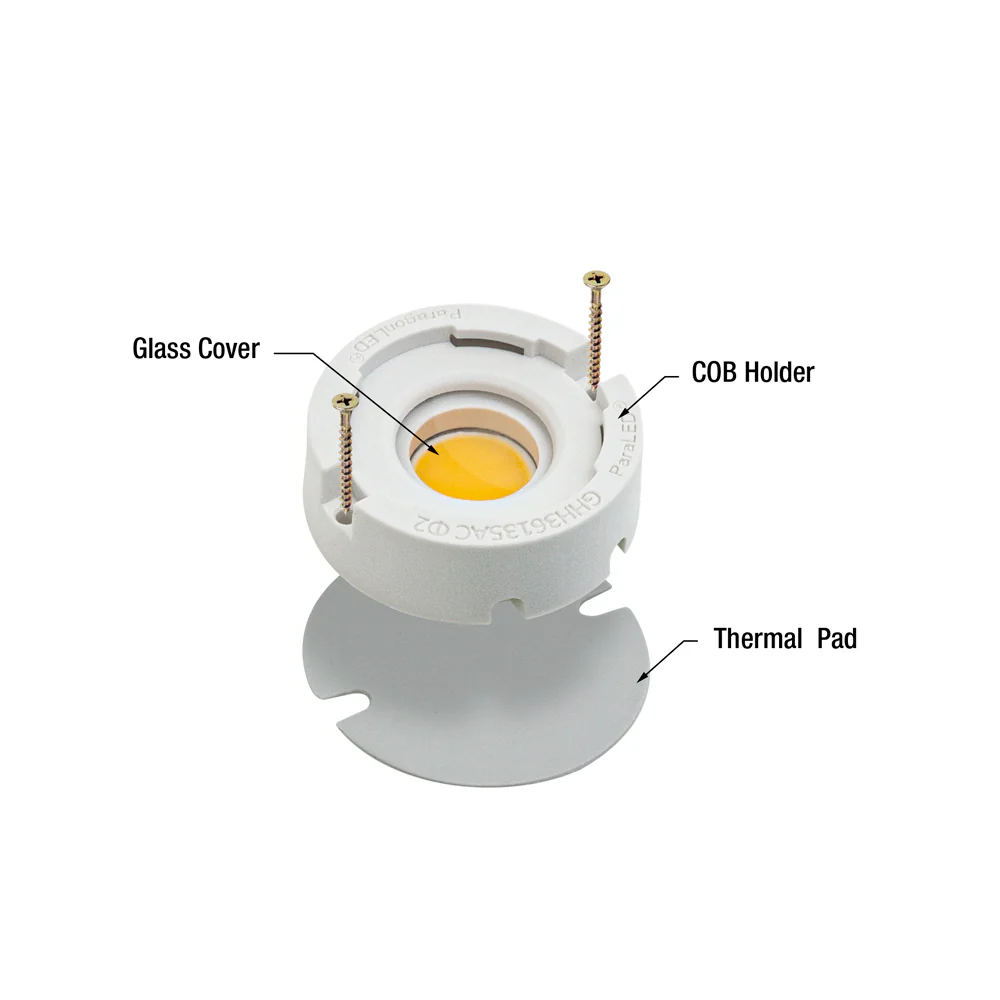

- This COB LED array holder allows the module to be mechanically secured, electrically connected, and pressed to a heat sink.
- The silicone grease thermal pad provides a heat sink and aids in better heat dissipation, thereby increasing the lifespan of the module.
- This product is available in different wattages (4W, 6W, 8W) while maintaining the same color temperature.
| Model No | CBHT-42-30135-120V-30-G03 |
| COB Holder Model No | GHH36135AC |
|
LED Type |
COB LED |
| No LED chips | 42 |
| Wattage | 6W |
| Voltage | 120V AC |
| Power Factor | PF>0.98 |
| Luminous Intensity | 420 lumens |
| Color Temperature | 3000K (Warm White) |
| Dimmable | Yes |
| Rendering Index | CRI>90 |
| IP Rating | IP20 (Indoor rated) |
| COB Holder Dimensions | ∅36mm (1.4 in) x H11.60mm (0.45 in) |
| COB Module Outer Diameter | ∅27 mm (1.06 in) |
| Operating Temperature | -40 ~ +105℃ |
| Storage Temperature | -40 ~ +105℃ |
| Assembly process Temperature | <300℃ |
| Solder joint point | <105℃ |
| Dielectric Breakdown Voltage of Thermal Pad | >4KV |
| Included Content | COB Module, COB LED Array Holder, Thermal Pad |
| Certifications | |
Features:
- Low power consumption and high energy efficiency.
- Suitable for damp locations.
- Requires an aluminum heat sink to prevent overheating, which can cause serious luminous decay.
- COB LEDs are brighter, consume less power, and provide higher quality beam output compared to older LED technologies.
- It is important to ground light fixtures while designing lamps.
- COB LEDs are commonly used in almost every kind of luminaire.
- This COB LED array holder allows the module to be mechanically secured, electrically connected, and pressed to a heat sink.
- The silicone grease thermal pad provides a heat sink and aids in better heat dissipation, thereby increasing the lifespan of the module.
- This product is available in different wattages (4W, 6W, 8W) while maintaining the same color temperature.
