CDAC-20-30135-120V-30 COB Paragon LED Module with GPH48135A LED Holder, 120V 6W 3000K
| Model No | CDAC-20-30135-120V-30 |
| COB Holder Model No | GPH48135AC |
|
LED Type |
COB LED |
| No LED chips | 20 |
| Wattage: | 6W |
| Voltage: | 120V AC |
| Luminous Intensity | 420 lumens |
| Color Temperature | 3000K (Warm White) |
| Dimmable | Yes |
| Rendering Index | CRI>90 |
| IP Rating | IP20 (Indoor rated) |
| COB Holder Dimensions | ∅55 x ∅38 x H10.20 mm (2.15 x 1.5 x 0.4 in) |
| COB Module Outer Diameter | ∅27mm (1.06 in) |
| Operating Temperature | -60 ~ +105℃ |
| Storage Temperature | -60 ~ +105℃ |
| Assembly process Temperature | <300℃ |
| Solder joint point | <105℃ |
| Dielectric Breakdown Voltage of Thermal Pad | >4KV |

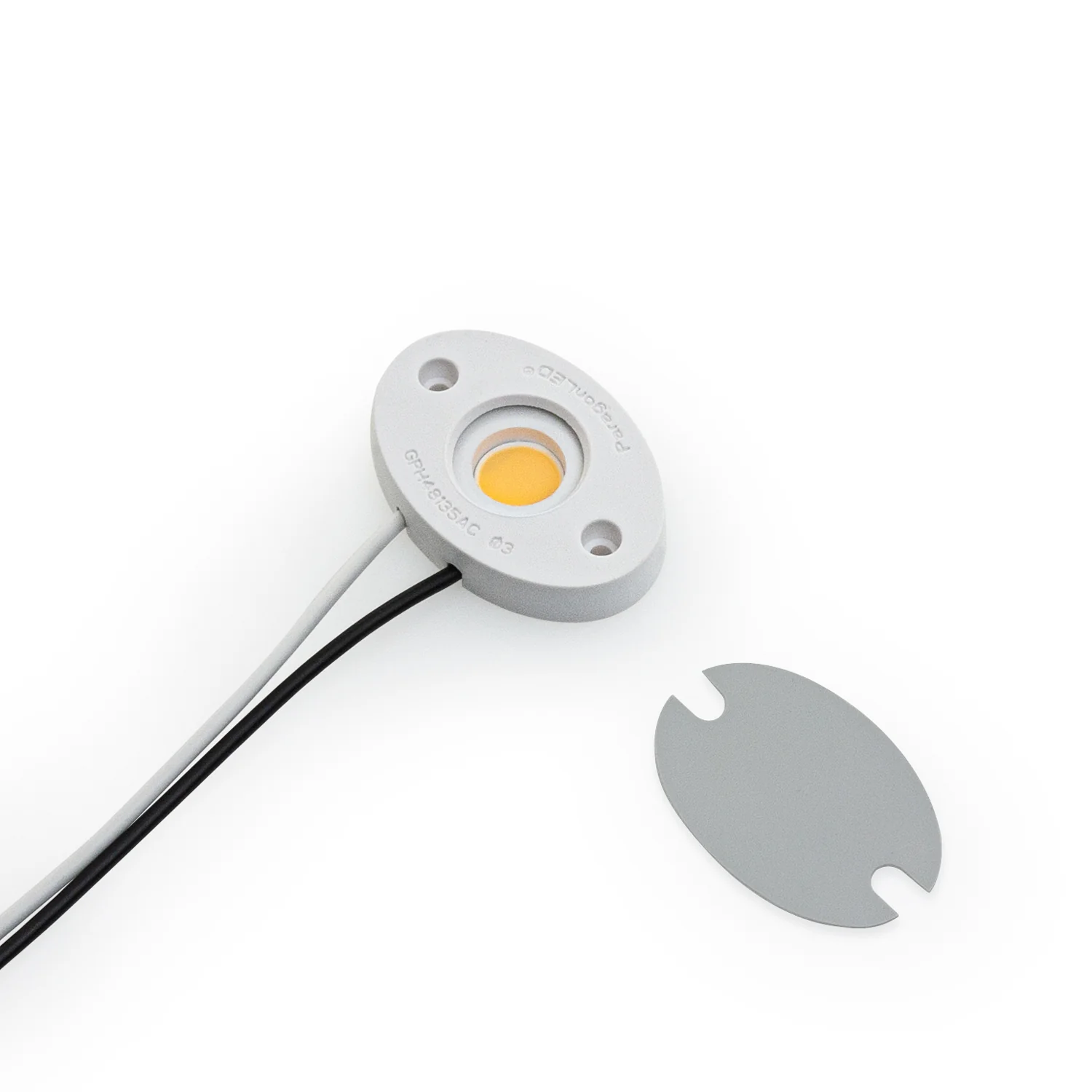

| Included Content | COB Module, COB Holder with Glass Protection, Thermal Pad |
| Certifications |  |
Features:
- Low power consumption and high energy efficiency.
- Suitable for use in damp locations.
- Requires an aluminum heat sink to prevent overheating and potential luminous decay.
- COB LEDs provide brighter light output, consume less power, and offer a higher quality beam compared to older LED technologies.
- It is important to properly ground light fixtures during the design of lamps.
- COB LEDs are compatible with various types of luminaires.

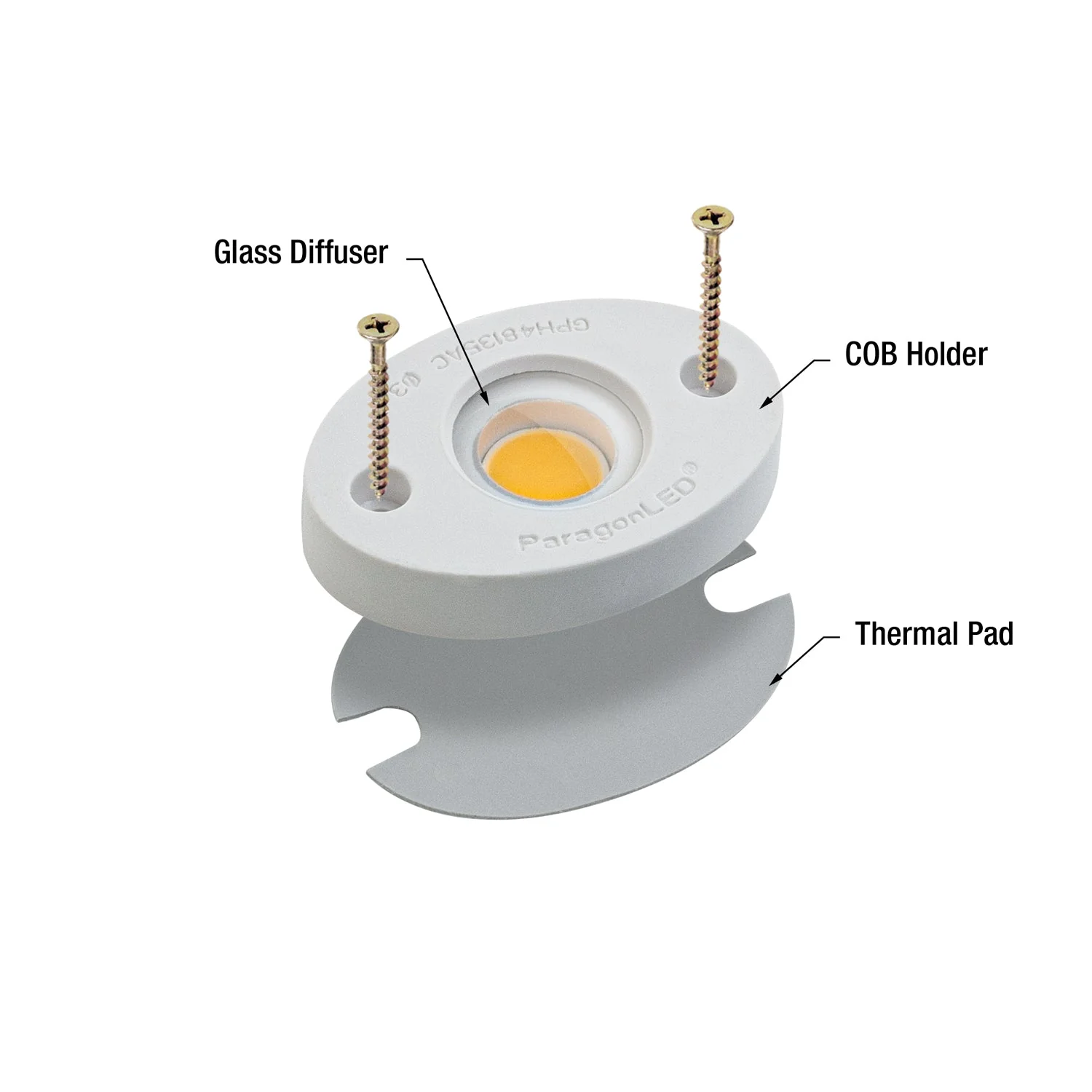

- The COB holder with a glass diffuser allows for secure mechanical installation, electrical connection, and attachment to a heat sink.
- The silicone grease thermal pad enhances heat dissipation, extending the lifespan of the module.
| Model No | CDAC-20-30135-120V-30 |
| COB Holder Model No | GPH48135AC |
|
LED Type |
COB LED |
| No LED chips | 20 |
| Wattage: | 6W |
| Voltage: | 120V AC |
| Luminous Intensity | 420 lumens |
| Color Temperature | 3000K (Warm White) |
| Dimmable | Yes |
| Rendering Index | CRI>90 |
| IP Rating | IP20 (Indoor rated) |
| COB Holder Dimensions | ∅55 x ∅38 x H10.20 mm (2.15 x 1.5 x 0.4 in) |
| COB Module Outer Diameter | ∅27mm (1.06 in) |
| Operating Temperature | -60 ~ +105℃ |
| Storage Temperature | -60 ~ +105℃ |
| Assembly process Temperature | <300℃ |
| Solder joint point | <105℃ |
| Dielectric Breakdown Voltage of Thermal Pad | >4KV |
| Included Content | COB Module, COB Holder with Glass Protection, Thermal Pad |
| Certifications | |
Features:
- Low power consumption and high energy efficiency.
- Suitable for use in damp locations.
- Requires an aluminum heat sink to prevent overheating and potential luminous decay.
- COB LEDs provide brighter light output, consume less power, and offer a higher quality beam compared to older LED technologies.
- It is important to properly ground light fixtures during the design of lamps.
- COB LEDs are compatible with various types of luminaires.
- The COB holder with a glass diffuser allows for secure mechanical installation, electrical connection, and attachment to a heat sink.
- The silicone grease thermal pad enhances heat dissipation, extending the lifespan of the module.
$23.50
CDAC-20-30135-120V-30 COB Paragon LED Module with GPH48135A LED Holder, 120V 6W 3000K—
$23.50
Description
| Model No | CDAC-20-30135-120V-30 |
| COB Holder Model No | GPH48135AC |
|
LED Type |
COB LED |
| No LED chips | 20 |
| Wattage: | 6W |
| Voltage: | 120V AC |
| Luminous Intensity | 420 lumens |
| Color Temperature | 3000K (Warm White) |
| Dimmable | Yes |
| Rendering Index | CRI>90 |
| IP Rating | IP20 (Indoor rated) |
| COB Holder Dimensions | ∅55 x ∅38 x H10.20 mm (2.15 x 1.5 x 0.4 in) |
| COB Module Outer Diameter | ∅27mm (1.06 in) |
| Operating Temperature | -60 ~ +105℃ |
| Storage Temperature | -60 ~ +105℃ |
| Assembly process Temperature | <300℃ |
| Solder joint point | <105℃ |
| Dielectric Breakdown Voltage of Thermal Pad | >4KV |
| Included Content | COB Module, COB Holder with Glass Protection, Thermal Pad |
| Certifications | |
Features:
- Low power consumption and high energy efficiency.
- Suitable for use in damp locations.
- Requires an aluminum heat sink to prevent overheating and potential luminous decay.
- COB LEDs provide brighter light output, consume less power, and offer a higher quality beam compared to older LED technologies.
- It is important to properly ground light fixtures during the design of lamps.
- COB LEDs are compatible with various types of luminaires.
- The COB holder with a glass diffuser allows for secure mechanical installation, electrical connection, and attachment to a heat sink.
- The silicone grease thermal pad enhances heat dissipation, extending the lifespan of the module.
