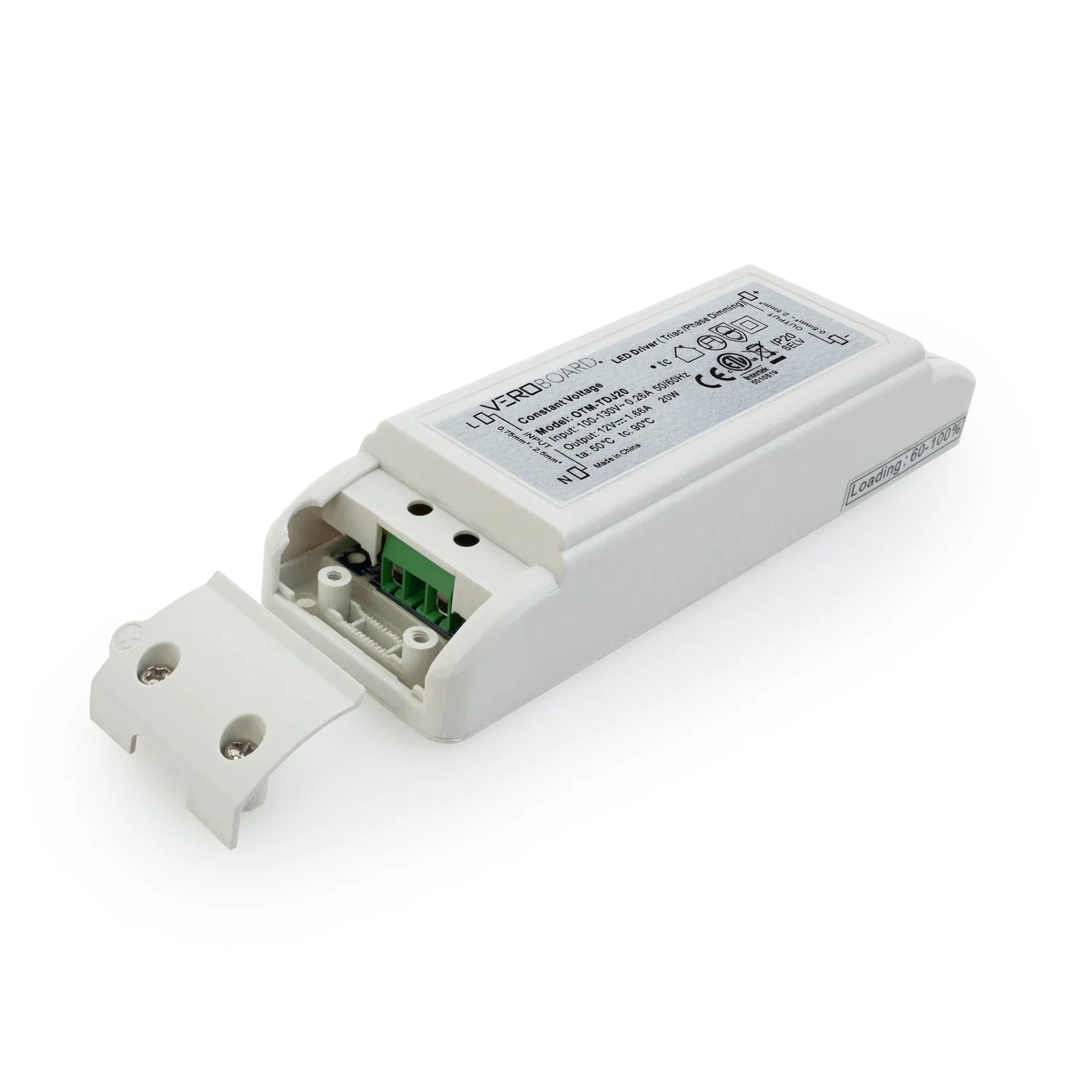

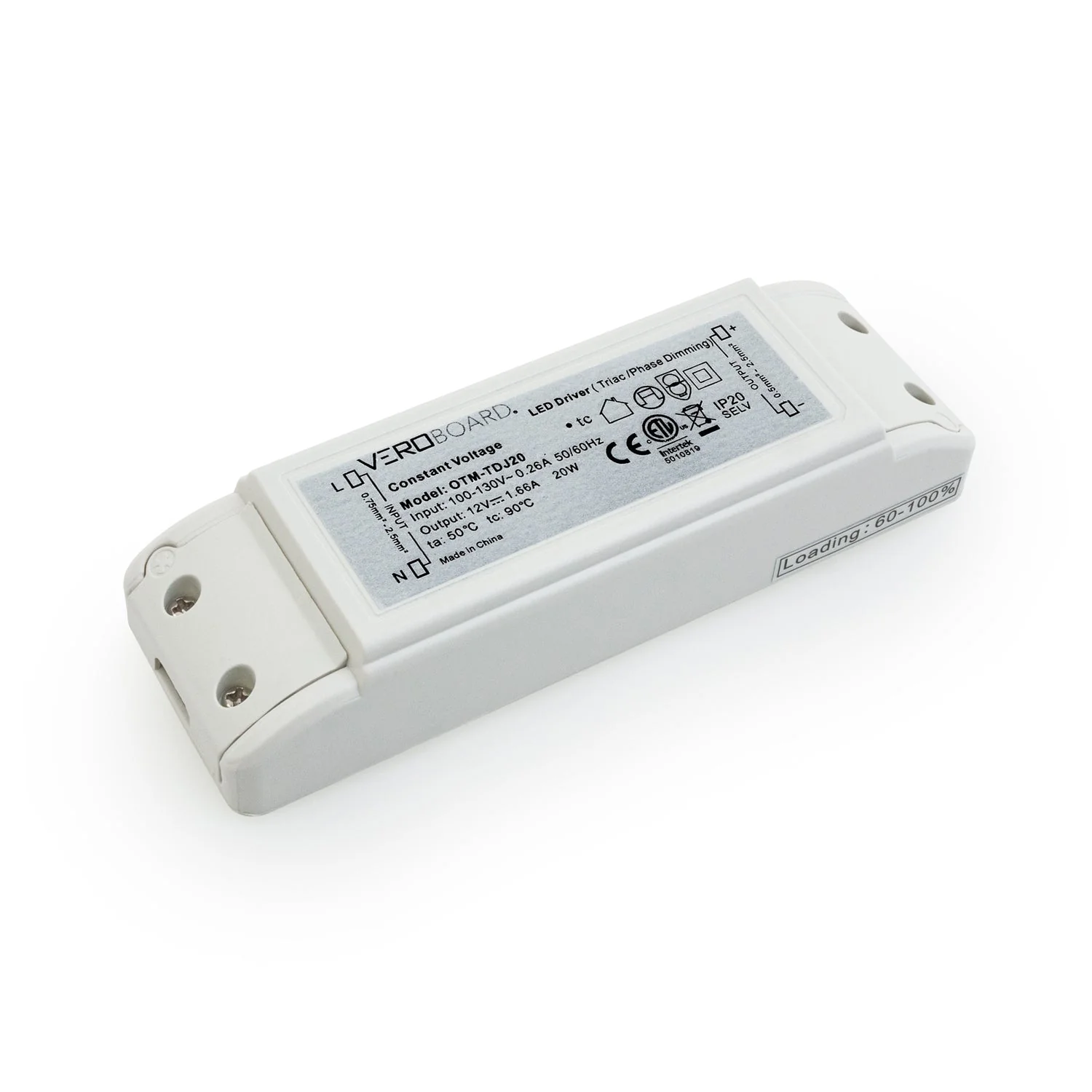

OTM-TDJ20 Constant Voltage Triac Dimming LED Driver, 12V 1.66A 20W
| Model | OTM-TDJ20 |
| Input Voltage | 100-130V AC |
| Input Frequency | 50-60Hz |
| Output Voltage | 12V DC |
| Input Current | 0.26A |
| Output regulated Current | 1.66A |
| Output max Power | 20W |
| Dimmable | Yes (Triac/Phase Dimming) |
| IP Rating | IP20 (Indoor Rated) |
| Ambient Temperature (Ta) | 50°C |
| Case Temperature (Tc) | 90°C |
| Class Certification | Class II/ SELV |
| Dimensions | 140 x 45 x 27.27mm (5.5 x 1.77 x 1.07in) |
| Certification |

|
|
Compatible with Forward-Phase & Triac dimmers |
| Short circuit and overload protected |
| Applicable for Dry and Damp locations |
| Class II certified, Double-layer insulation |
Features:
- OTM-TDJ20 Triac dimmable constant voltage LED driver
- Converts 100-130V AC input voltage to 12V DC output voltage
- Input current: 0.26A, output regulated current: 1.66A
- Maximum output power: 20W
- Dimmable using Triac/Phase Dimming technology
- IP20 rating for indoor use only
- Class II/SELV certification for enhanced safety
- Operating ambient temperature: up to 50°C, case temperature: 90°C
- Dimensions: 140 x 45 x 27.27mm (5.5 x 1.77 x 1.07in)
- ETL certified for safety and compliance.
| Model | OTM-TDJ20 |
| Input Voltage | 100-130V AC |
| Input Frequency | 50-60Hz |
| Output Voltage | 12V DC |
| Input Current | 0.26A |
| Output regulated Current | 1.66A |
| Output max Power | 20W |
| Dimmable | Yes (Triac/Phase Dimming) |
| IP Rating | IP20 (Indoor Rated) |
| Ambient Temperature (Ta) | 50°C |
| Case Temperature (Tc) | 90°C |
| Class Certification | Class II/ SELV |
| Dimensions | 140 x 45 x 27.27mm (5.5 x 1.77 x 1.07in) |
| Certification |
|
|
Compatible with Forward-Phase & Triac dimmers |
| Short circuit and overload protected |
| Applicable for Dry and Damp locations |
| Class II certified, Double-layer insulation |
Features:
- OTM-TDJ20 Triac dimmable constant voltage LED driver
- Converts 100-130V AC input voltage to 12V DC output voltage
- Input current: 0.26A, output regulated current: 1.66A
- Maximum output power: 20W
- Dimmable using Triac/Phase Dimming technology
- IP20 rating for indoor use only
- Class II/SELV certification for enhanced safety
- Operating ambient temperature: up to 50°C, case temperature: 90°C
- Dimensions: 140 x 45 x 27.27mm (5.5 x 1.77 x 1.07in)
- ETL certified for safety and compliance.
