Model	VBD-012-060VTSP
Input Voltage	100-277V AC
Input Current	0.9A
Frequency	50/60Hz
Power Factor	0.95
Output Voltage	12V DC
Output regulated Current	5.0A
Output Power	60W
Dimmable	Yes  (Triac/Phase-cut Dimming)
Waterproof	No
IP Rating	IP20
Class Certification	Class 2/ Class P/ Type HL/Class II
Dimensions	300 x  30.88 x 18.58mm (11.81 x 1.21 x 0.73 in)
Certifications

Suitable for DRY and DAMP Locations

Compatible with Forward-Phase, MLV, ELV, & Triac dimmers



Features:

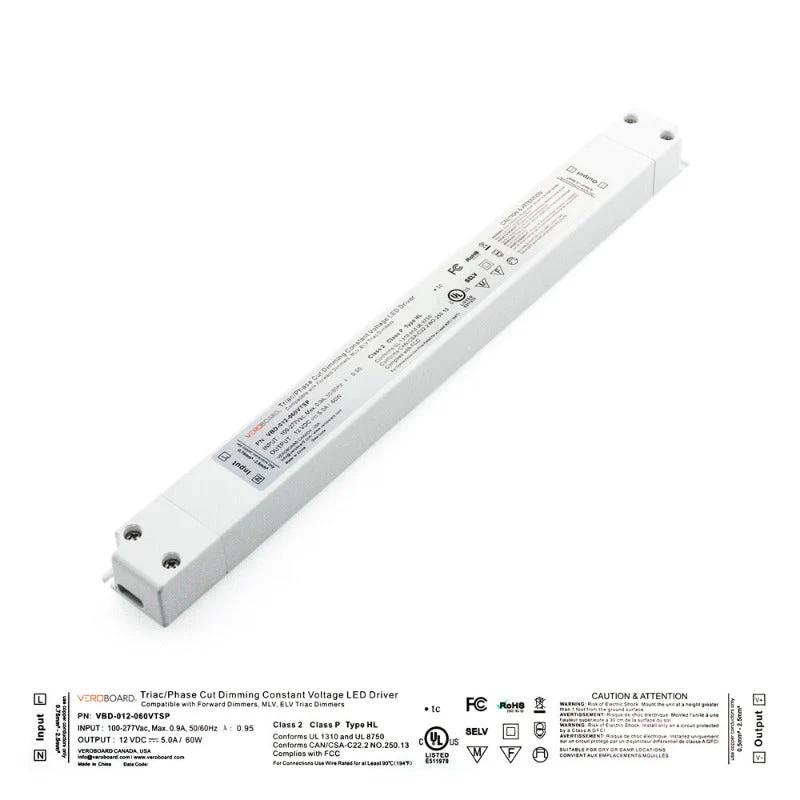

• The Super Slim VBD-012-060VTSP Triac Dimmable Constant Voltage LED Driver is designed for use with LED lighting systems.
• It has an input voltage range of 100-277V AC and an input current of 0.9A, with a power factor of 0.95 indicating high efficiency.
• The driver provides a constant voltage output of 12V DC, with an output current of up to 5.0A and a maximum output power of 60W.
• It is dimmable using Triac/Phase-cut dimming technology, allowing for adjustable brightness levels.
• The driver is not waterproof, with an IP rating of IP20, so it is suitable for indoor use only.
• It has several class certifications, including Class 2, Class P, Type HL, and Class II, indicating that it is designed to meet specific safety and performance standards.
• The compact dimensions of 300 x 30.88 x 18.58mm (11.81 x 1.21 x 0.73 in) make it easy to install in a variety of locations.
• The driver is certified by the FCC for safety and compliance.
