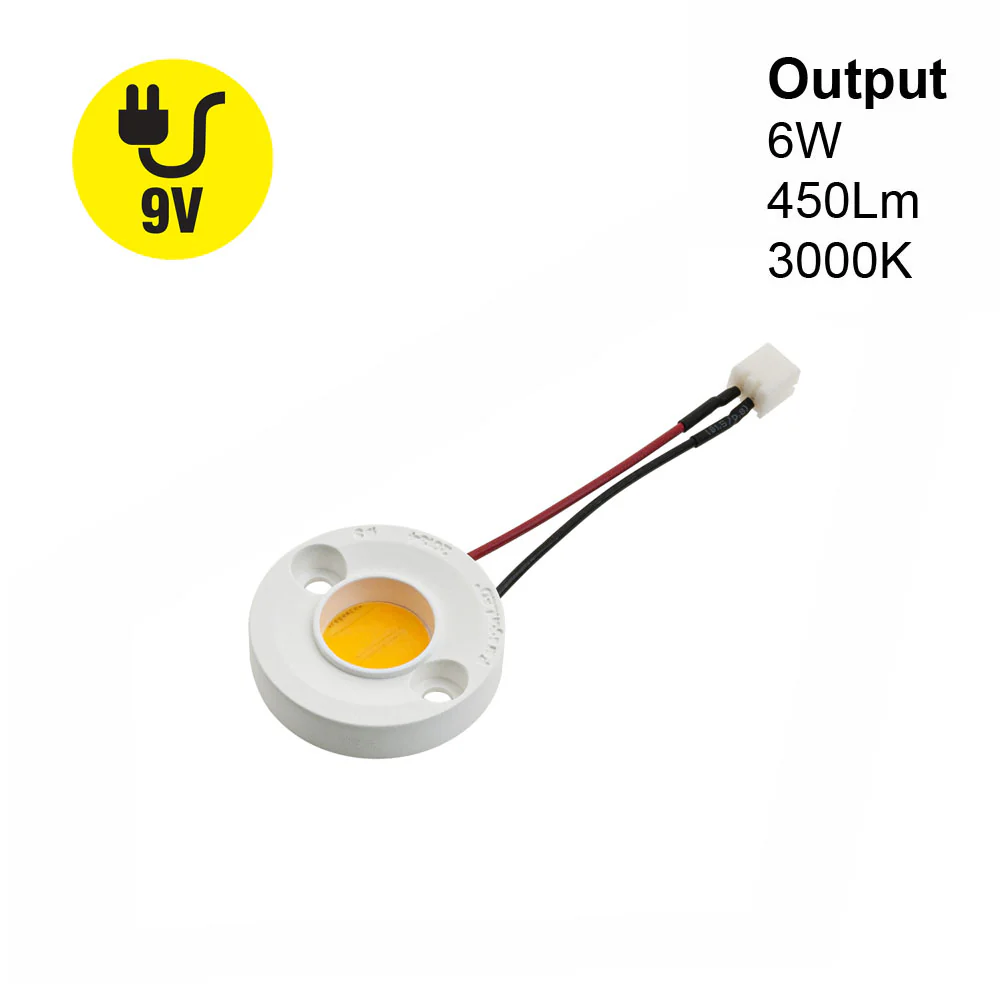

CBCC-24-20124-9V-30 COB Paragon LED Module with G21100110 LED Holder, 9V 6W 3000K (Warm White)
| Model No | CBCC-24-20124-9V-30 |
| COB Holder Model No | G21100110 |
|
LED Type |
COB LED |
| Wattage | 6W |
| Voltage | 9V DC |
| Luminous Intensity | 450 lumens |
| Color Temperature | 3000K (Warm White) |
| Dimmable | Yes |
| Rendering Index | CRI>90 |
| IP Rating | IP20 (Indoor rated) |

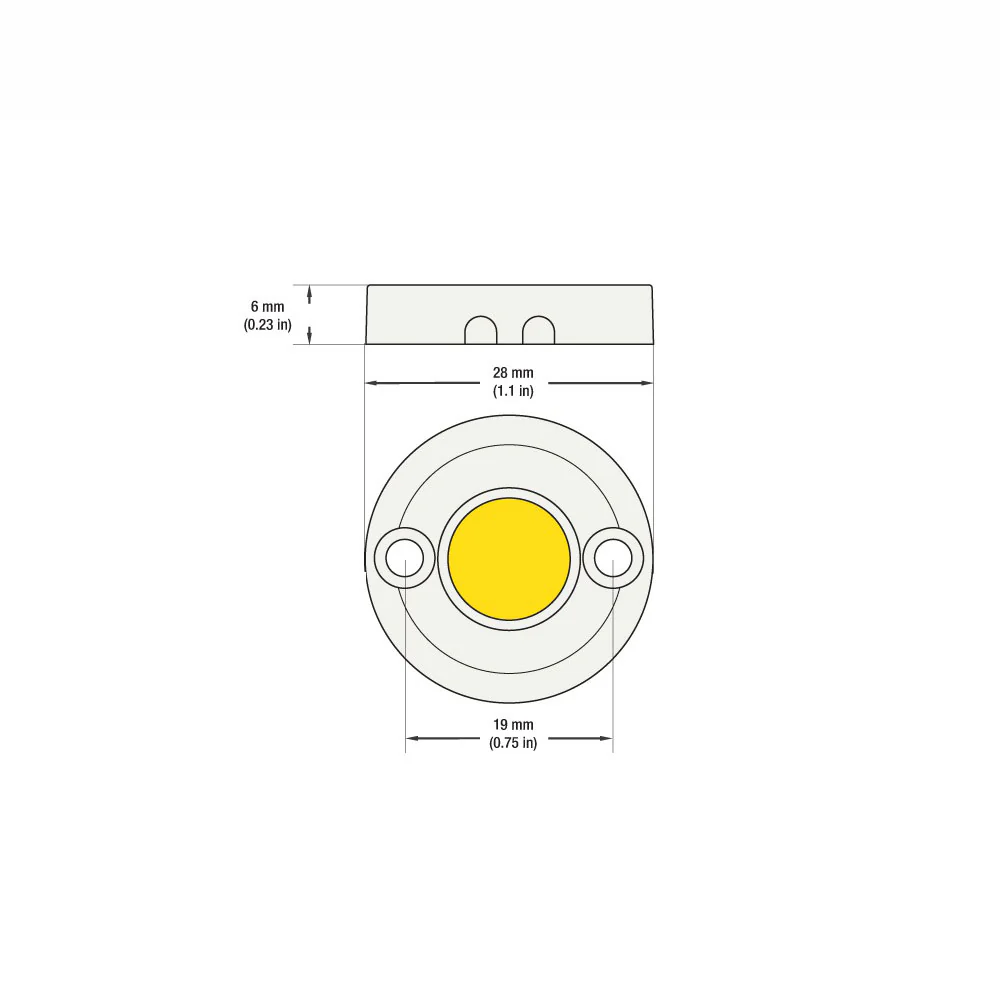

| COB Holder Dimensions | ∅28 x H6 mm (1.1 x 0.2 in) |
| COB Module Outer Diameter | ∅12.3mm (0.4 in) |
| Operating Temperature | -60 ~ +105℃ |
| Storage Temperature | -60 ~ +105℃ |
| Assembly process Temperature | <300℃ |
| Solder joint point | <105℃ |

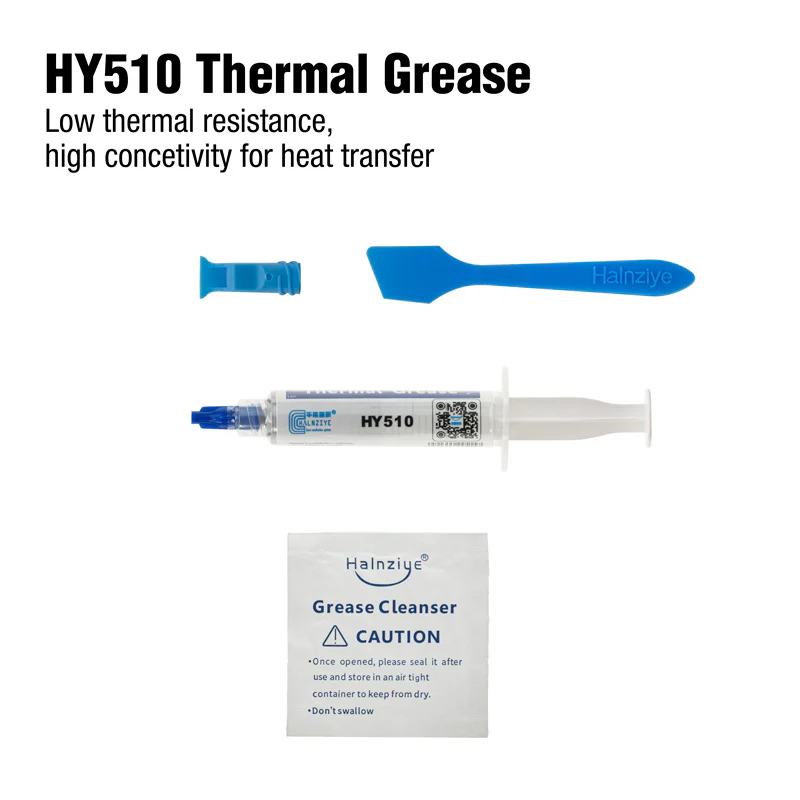

| Included Content | COB Module, COB Holder, Thermal Grease HY510 (5gr) |
| Certifications |  |
Features:
- Designed to be used with G21100110 LED Holder
- Operates on 9V DC with a power consumption of 6W
- Produces warm white light with color temperature of 3000K and CRI>90
- Dimmable and suitable for use in damp locations (IP20 rating)
- Requires aluminum heat sink to prevent overheating and luminous decay
- More energy-efficient and produces brighter and higher quality beam output than older LED technologies
- Suitable for use in almost every kind of luminaire
- Comes with COB Holder, Thermal Grease HY510 (5gr), and is UL certified
- Grounding light fixtures is essential for safe and efficient operation
- Operates at temperatures ranging from -60 ~ +105℃, and solder joint point should be kept below 105℃
| Model No | CBCC-24-20124-9V-30 |
| COB Holder Model No | G21100110 |
|
LED Type |
COB LED |
| Wattage | 6W |
| Voltage | 9V DC |
| Luminous Intensity | 450 lumens |
| Color Temperature | 3000K (Warm White) |
| Dimmable | Yes |
| Rendering Index | CRI>90 |
| IP Rating | IP20 (Indoor rated) |
| COB Holder Dimensions | ∅28 x H6 mm (1.1 x 0.2 in) |
| COB Module Outer Diameter | ∅12.3mm (0.4 in) |
| Operating Temperature | -60 ~ +105℃ |
| Storage Temperature | -60 ~ +105℃ |
| Assembly process Temperature | <300℃ |
| Solder joint point | <105℃ |
| Included Content | COB Module, COB Holder, Thermal Grease HY510 (5gr) |
| Certifications | |
Features:
- Designed to be used with G21100110 LED Holder
- Operates on 9V DC with a power consumption of 6W
- Produces warm white light with color temperature of 3000K and CRI>90
- Dimmable and suitable for use in damp locations (IP20 rating)
- Requires aluminum heat sink to prevent overheating and luminous decay
- More energy-efficient and produces brighter and higher quality beam output than older LED technologies
- Suitable for use in almost every kind of luminaire
- Comes with COB Holder, Thermal Grease HY510 (5gr), and is UL certified
- Grounding light fixtures is essential for safe and efficient operation
- Operates at temperatures ranging from -60 ~ +105℃, and solder joint point should be kept below 105℃
