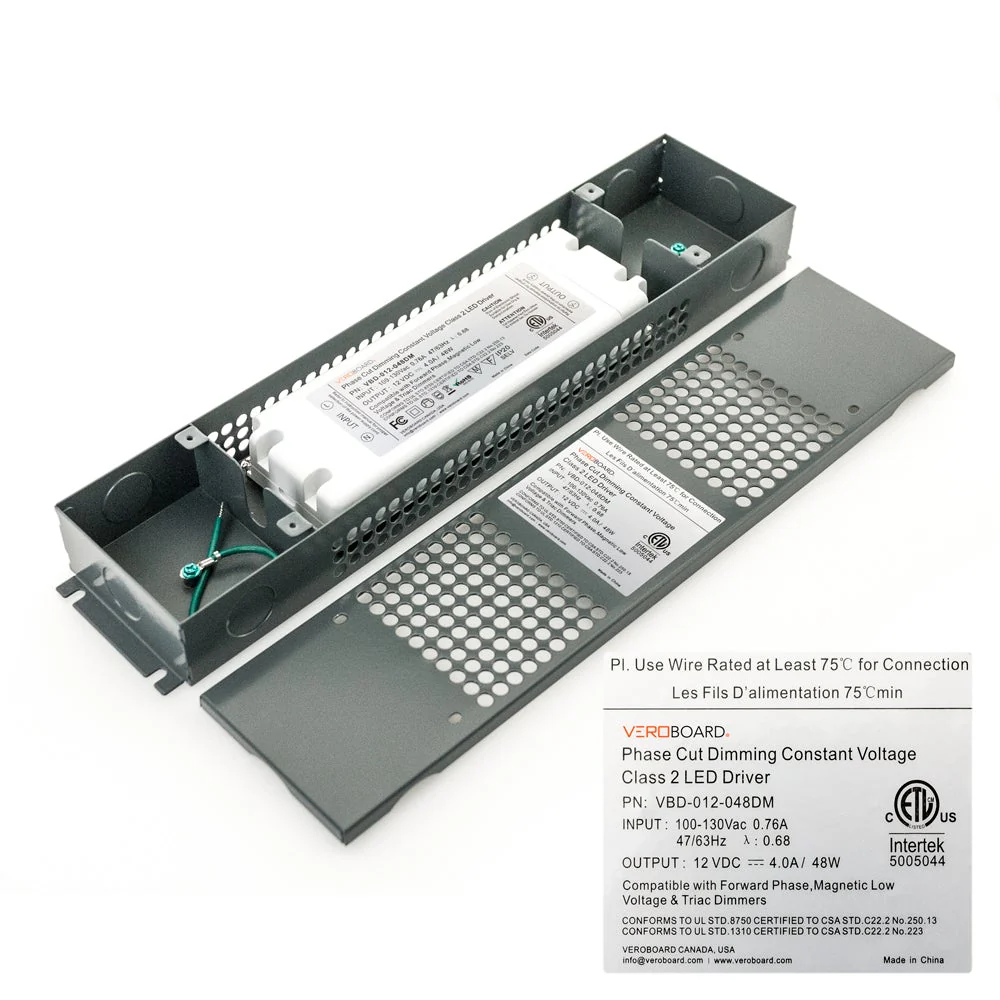

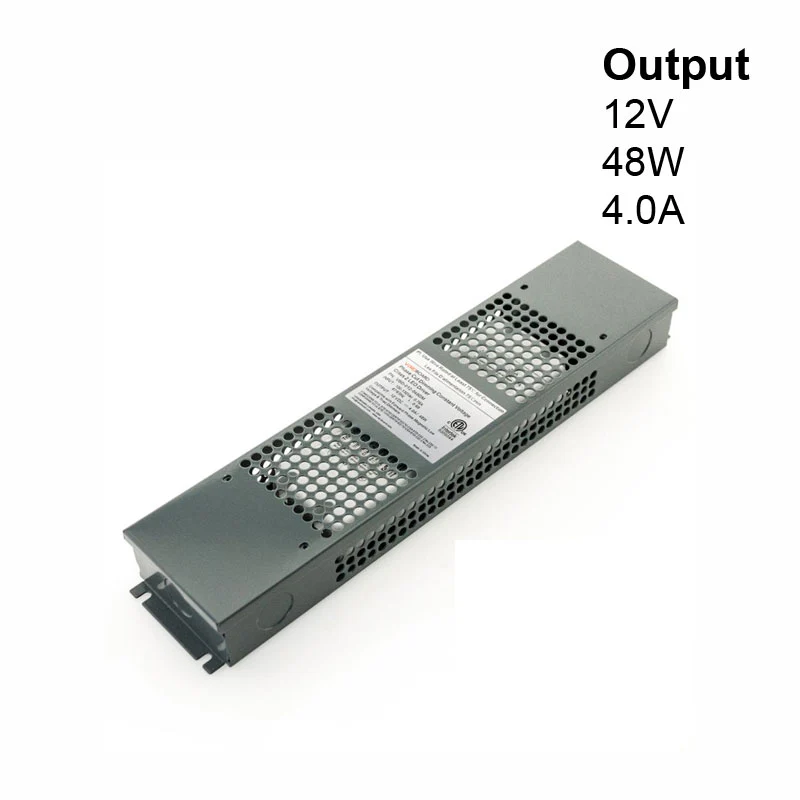

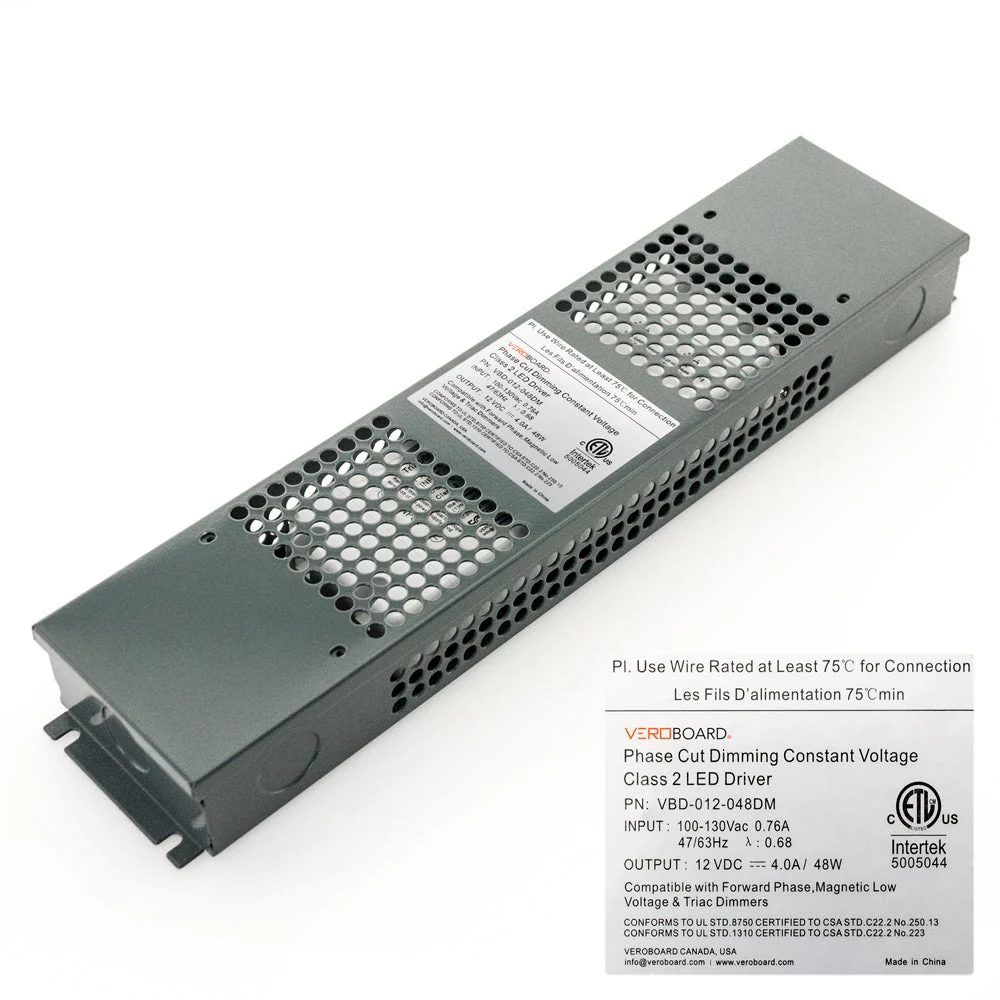

VBD-012-048DM Triac Dimmable Constant Voltage LED Driver, 12V 4.0A 48W
| Model | VBD-012-048DM |
| Input Voltage | 100-130V AC |
| Input Current | 0.76A |
| Efficiency | 47/63Hz |
| Output Voltage | 12V DC |
| Output regulated Current | 4.0A |
| Output Power | 48W max |
| Power Factor | 0.68 |
| Dimmable | Yes (Phase/ Triac/ Magnetic Low Voltage Dimming) |
| IP Rating | IP20 |
| Class Certification | Class2/ Class II/ SELV |

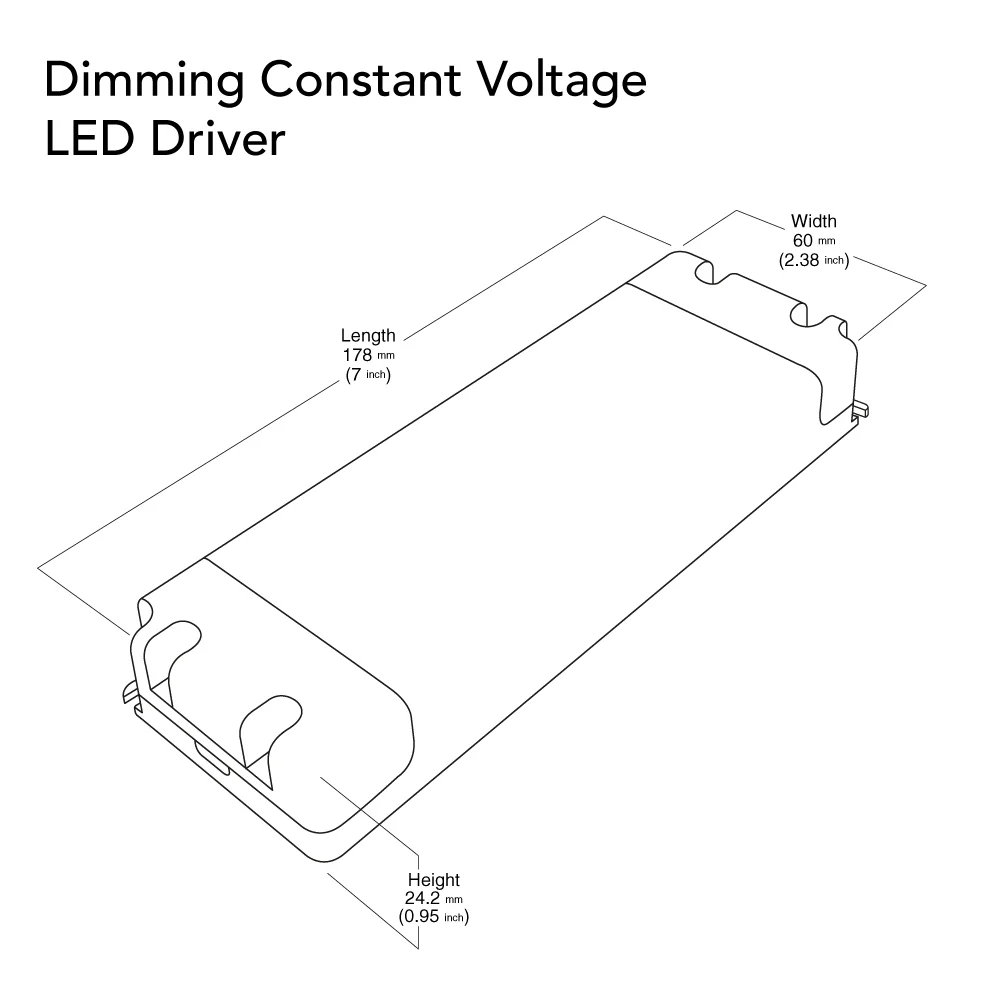

| Dimensions (Without Box) | 178x 60x 24.2mm (7 x 2.38 x 0.95 in) |

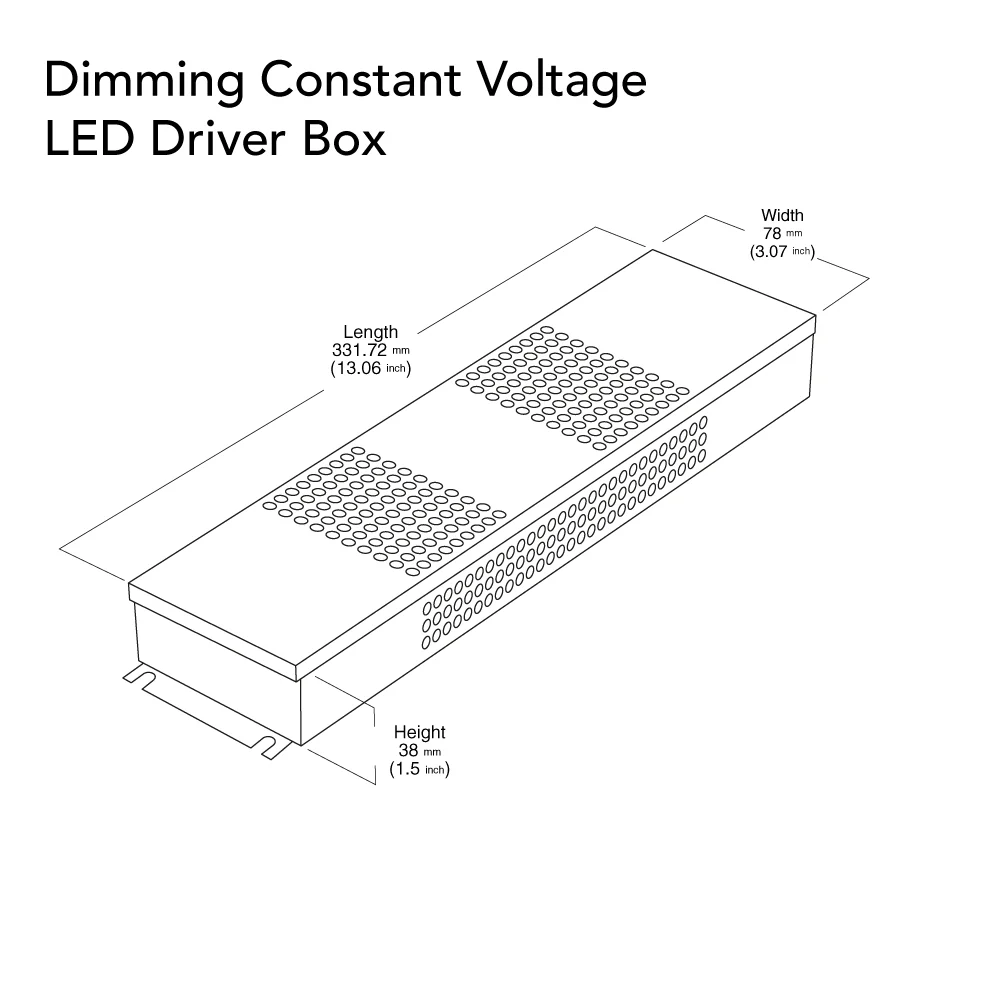

| Dimensions (Box) | 331.72 x 78 x 38mm (13.06x3.07x1.5 in) |
| Certification |    |
| Applicable for Dry and Damp locations |
| Compatible with Forward-Phase, Magnetic low Voltage & Triac dimmers |
Features:
- Designed specifically for LED lighting systems
- Provides a constant output voltage of 12 volts
- Output current of 4.0 amps
- Maximum output power of 48 watts
- Dimmable using a Triac dimmer
- Input voltage range of 100-130V AC
- Utilizes phase-cutting for power regulation
- Input voltage required for operation is 100-130V AC
- Classified as a Class 2 power supply with limited power output
- Certified by ETL for safety and compliance with regulations
| Model | VBD-012-048DM |
| Input Voltage | 100-130V AC |
| Input Current | 0.76A |
| Efficiency | 47/63Hz |
| Output Voltage | 12V DC |
| Output regulated Current | 4.0A |
| Output Power | 48W max |
| Power Factor | 0.68 |
| Dimmable | Yes (Phase/ Triac/ Magnetic Low Voltage Dimming) |
| IP Rating | IP20 |
| Class Certification | Class2/ Class II/ SELV |
| Dimensions (Without Box) | 178x 60x 24.2mm (7 x 2.38 x 0.95 in) |
| Dimensions (Box) | 331.72 x 78 x 38mm (13.06x3.07x1.5 in) |
| Certification | |
| Applicable for Dry and Damp locations |
| Compatible with Forward-Phase, Magnetic low Voltage & Triac dimmers |
Features:
- Designed specifically for LED lighting systems
- Provides a constant output voltage of 12 volts
- Output current of 4.0 amps
- Maximum output power of 48 watts
- Dimmable using a Triac dimmer
- Input voltage range of 100-130V AC
- Utilizes phase-cutting for power regulation
- Input voltage required for operation is 100-130V AC
- Classified as a Class 2 power supply with limited power output
- Certified by ETL for safety and compliance with regulations
