VBD-012-096DM Triac Dimmable Constant Voltage LED Driver, 12V 8.0A 96W
| Model | VBD-012-096DM |
| Input Voltage | 100-130V AC |
| Input Current | 1.53A |
| Frequency | 47/63Hz |
| Power Factor | 0.68 |
| Output voltage | 12V DC |
| Output regulated current | 8.0A |
| Output max Power | 96W max |
| Dimmable | Yes (Phase-Cut and Triac Dimming) |
| IP Rating | IP67 (Outdoor rated) |

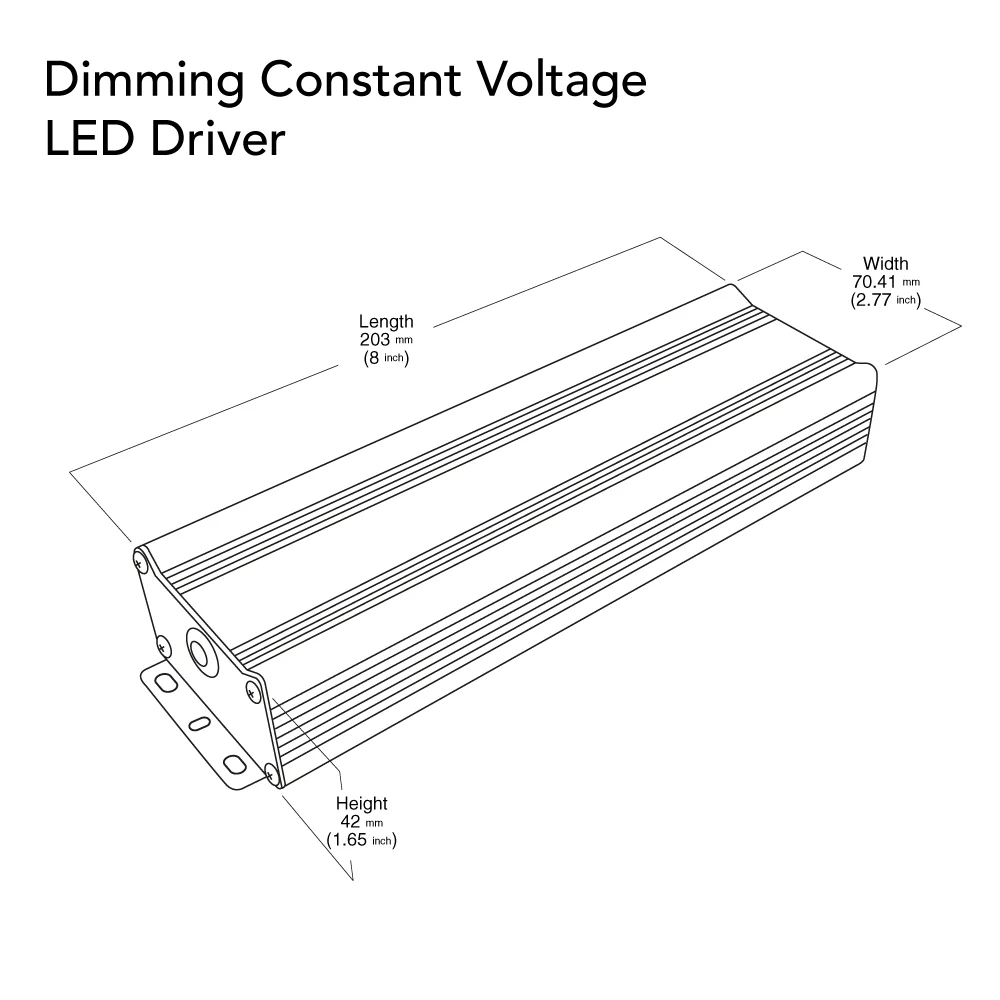

| Dimensions (Without Box) | 203 x 70.41 x 42mm (8 x 2.77 x 1.65 in) |

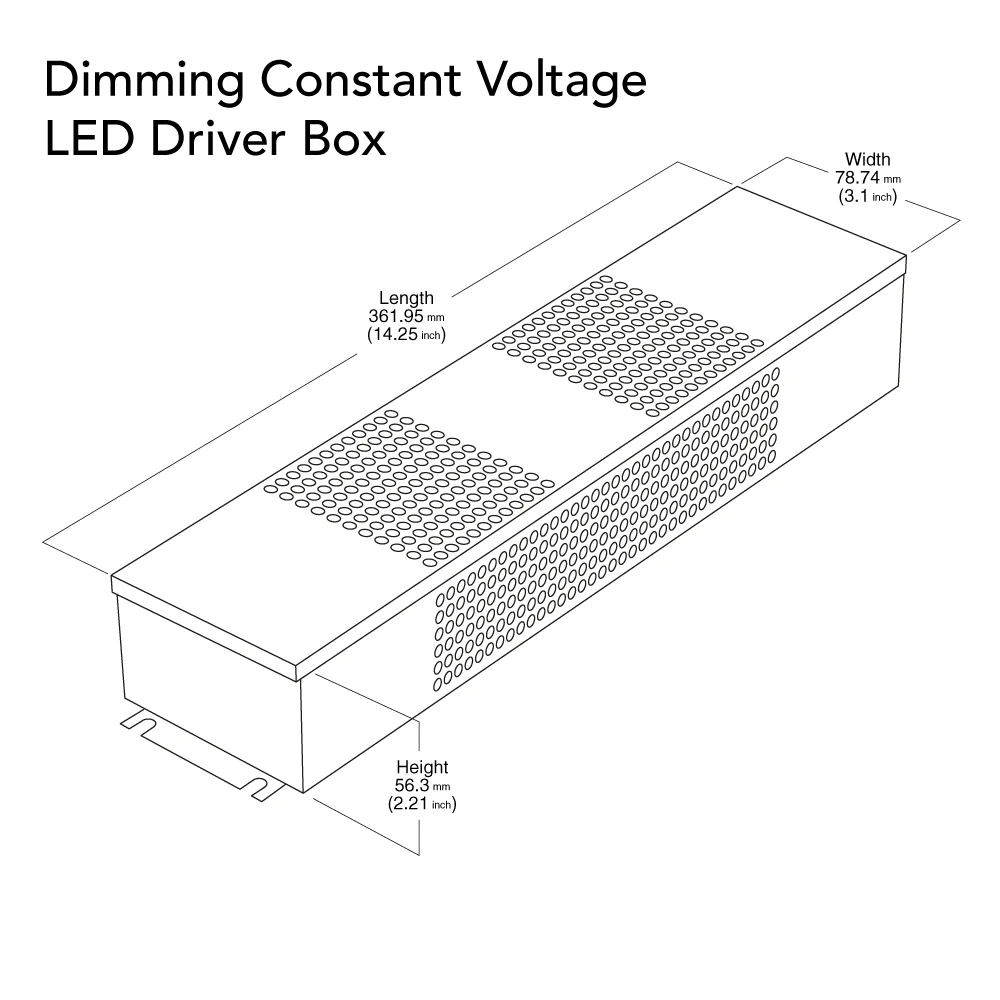

| Dimensions (Box) | 361.95 x 78.74 x 56.3mm (14.25 x 3.1 x 2.21 in) |
| Certifications |    |
| Applicable for dry, damp, and wet locations. |
| Compatible with Forward-Phase, Magnetic low Voltage & Triac dimmers |
Features:
- Designed for LED lighting systems with a constant output voltage of 12 volts and output current of 8.0 amps, delivering a maximum output power of 96 watts.
- Dimmable using both Phase-cut and Triac dimming methods, providing flexibility in lighting control.
- Operates with an input voltage range of 100-130V AC and an input current of 1.53A.
- Frequency range of 47/63Hz and a power factor of 0.68.
- Regulates output voltage at 12V DC and provides a constant output current of 8.0 amps, delivering a maximum output power of 96W.
- IP67 rated for outdoor use and protected against dust and water immersion up to 1 meter depth.
- Dimensions: 203 x 70.41 x 42mm (8 x 2.77 x 1.65 in) without the box, 361.95 x 78.74 x 56.3mm (14.25 x 3.1 x 2.21 in) with the box.
- Certified by ETL, meeting safety standards and compliance regulations, ensuring safety and quality standards for electrical devices.
| Model | VBD-012-096DM |
| Input Voltage | 100-130V AC |
| Input Current | 1.53A |
| Frequency | 47/63Hz |
| Power Factor | 0.68 |
| Output voltage | 12V DC |
| Output regulated current | 8.0A |
| Output max Power | 96W max |
| Dimmable | Yes (Phase-Cut and Triac Dimming) |
| IP Rating | IP67 (Outdoor rated) |
| Dimensions (Without Box) | 203 x 70.41 x 42mm (8 x 2.77 x 1.65 in) |
| Dimensions (Box) | 361.95 x 78.74 x 56.3mm (14.25 x 3.1 x 2.21 in) |
| Certifications | |
| Applicable for dry, damp, and wet locations. |
| Compatible with Forward-Phase, Magnetic low Voltage & Triac dimmers |
Features:
- Designed for LED lighting systems with a constant output voltage of 12 volts and output current of 8.0 amps, delivering a maximum output power of 96 watts.
- Dimmable using both Phase-cut and Triac dimming methods, providing flexibility in lighting control.
- Operates with an input voltage range of 100-130V AC and an input current of 1.53A.
- Frequency range of 47/63Hz and a power factor of 0.68.
- Regulates output voltage at 12V DC and provides a constant output current of 8.0 amps, delivering a maximum output power of 96W.
- IP67 rated for outdoor use and protected against dust and water immersion up to 1 meter depth.
- Dimensions: 203 x 70.41 x 42mm (8 x 2.77 x 1.65 in) without the box, 361.95 x 78.74 x 56.3mm (14.25 x 3.1 x 2.21 in) with the box.
- Certified by ETL, meeting safety standards and compliance regulations, ensuring safety and quality standards for electrical devices.
$33.97
Original: $113.22
-70%VBD-012-096DM Triac Dimmable Constant Voltage LED Driver, 12V 8.0A 96W—
$113.22
$33.97Description
| Model | VBD-012-096DM |
| Input Voltage | 100-130V AC |
| Input Current | 1.53A |
| Frequency | 47/63Hz |
| Power Factor | 0.68 |
| Output voltage | 12V DC |
| Output regulated current | 8.0A |
| Output max Power | 96W max |
| Dimmable | Yes (Phase-Cut and Triac Dimming) |
| IP Rating | IP67 (Outdoor rated) |
| Dimensions (Without Box) | 203 x 70.41 x 42mm (8 x 2.77 x 1.65 in) |
| Dimensions (Box) | 361.95 x 78.74 x 56.3mm (14.25 x 3.1 x 2.21 in) |
| Certifications | |
| Applicable for dry, damp, and wet locations. |
| Compatible with Forward-Phase, Magnetic low Voltage & Triac dimmers |
Features:
- Designed for LED lighting systems with a constant output voltage of 12 volts and output current of 8.0 amps, delivering a maximum output power of 96 watts.
- Dimmable using both Phase-cut and Triac dimming methods, providing flexibility in lighting control.
- Operates with an input voltage range of 100-130V AC and an input current of 1.53A.
- Frequency range of 47/63Hz and a power factor of 0.68.
- Regulates output voltage at 12V DC and provides a constant output current of 8.0 amps, delivering a maximum output power of 96W.
- IP67 rated for outdoor use and protected against dust and water immersion up to 1 meter depth.
- Dimensions: 203 x 70.41 x 42mm (8 x 2.77 x 1.65 in) without the box, 361.95 x 78.74 x 56.3mm (14.25 x 3.1 x 2.21 in) with the box.
- Certified by ETL, meeting safety standards and compliance regulations, ensuring safety and quality standards for electrical devices.
